Therapy Light Red Blue Infrared Red 3030 LED SMD Chip 120° Viewing Angle 3 Year Warranty

Product Categories
Shenzhen Huanyu Dream Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Therapy Light Red Blue Infrared Red 3030 LED SMD Chip 120° Viewing Angle 3 Year Warranty from wholesalers

    Buy cheap Therapy Light Red Blue Infrared Red 3030 LED SMD Chip 120° Viewing Angle 3 Year Warranty from wholesalers
    • Buy cheap Therapy Light Red Blue Infrared Red 3030 LED SMD Chip 120° Viewing Angle 3 Year Warranty from wholesalers
    • Buy cheap Therapy Light Red Blue Infrared Red 3030 LED SMD Chip 120° Viewing Angle 3 Year Warranty from wholesalers
    • Buy cheap Therapy Light Red Blue Infrared Red 3030 LED SMD Chip 120° Viewing Angle 3 Year Warranty from wholesalers

    Therapy Light Red Blue Infrared Red 3030 LED SMD Chip 120° Viewing Angle 3 Year Warranty

    Ask Lasest Price
    Brand Name : HuanYu Dream
    Model Number : HY-3030Red
    Certification : Rohs
    Price : Negotiable
    Payment Terms : T/T, Paypal,Ali Pay
    Supply Ability : 500kpcs/Day
    Delivery Time : 7-9 Work Days
    • Product Details
    • Company Profile

    Therapy Light Red Blue Infrared Red 3030 LED SMD Chip 120° Viewing Angle 3 Year Warranty

    Factory Directly 3030 Led Smd Red Chip Ultra Brightness 300mA 120° Viewing Angle 3ears Warranties

    SMD LED 3030 1W Red Colors 620-625nm

    Product Features

    • Package Size:3.0(L)x3.0(W)*1.8(H)mm
    • Wide colors: Red; Green; Blue; UV; Orange; Yellow; Amber..etc..Also provide 3030RGB
    • Copper base with ultra stability
    • Super long lifetime:>50000hrs

    ​Application

    • Widely apply in Decorative lighting
    • Commercial Illuminate and displays: Advertising words, light box; Garden lighting
    • fit for different working environment
    • Light Strip


    Product Specifications


    Electronic power1W
    ColorRed (620-625nm)
    VF2.0-2.2V
    IF300mA
    MaterialGold wire, Copper
    Brightness30-40LM
    Chip size(mil)18*18mil

    Absolute Maximum Ratings (TA=25ºC)


    ItemSymbolAbsolute Maximum RatingUnit
    Forward CurrentIF300mA
    Pulse Forward CurrentIFP350mA
    Reverse VoltageVR5V
    Power DissipationPD1000mW
    Operating TemperatureTopr-40ºC To +85ºC°C
    Storage TemperatureTstg-40ºC To +85ºC°C
    Soldering TemperatureTsld

    Reflow Soldering: 260ºC

    Hand Soldering : 350ºC

    for 10sec.

    for 3sec.


    Packaging(Units:mm)


    Taping Specifications

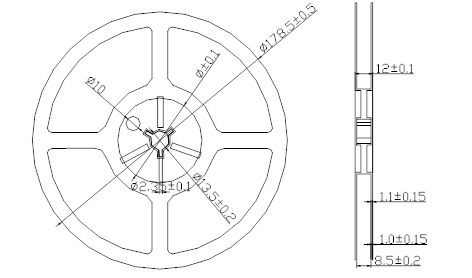

    Reel Dimension


    FAQ


    Q1: Will free samples be provided?
    A: Certainly! We do offer free samples initially for quality testing purposes.
    Q2: Are you a manufacturer or a trading company?
    A: We are a highly experienced and professional LED manufacturer with a history dating back to 2013.
    Q3: What payment methods are acceptable?
    A: We can accept T/T, Paypal, Western Union, and other methods according to clients' specific requirements.
    Q4: Regarding the lead time, what can be expected?
    A: It varies depending on the order quantity. Generally speaking, the lead time is around 5 to 7 working days. For samples, it's possible to have same-day delivery in some cases.
    Q5: How can I obtain a quotation from you?
    A: Kindly send us messages detailing your requirements, such as the specific products and the quantity you need. Our professional team will get back to you promptly, usually within a few hours.
    Q6: What kind of technical support is available after making a purchase?
    A: We will supply the data sheet and operation manual to you. Our sales engineers will be on standby to answer any of your questions at any time.
    Q7: In the event of LED failure, how will you provide support?
    A: Customers are required to provide pictures of the faulty products or the rejected samples. Our engineers will then analyze the failure to identify the causes. If the failure is due to product quality issues, we will replace them with qualified ones as compensation.
    Product Tags:

    120° Viewing Angle LED SMD Chip



    Therapy Light LED SMD Chip



    3030 LED SMD Chip


    Quality Therapy Light Red Blue Infrared Red 3030 LED SMD Chip 120° Viewing Angle 3 Year Warranty for sale

    Therapy Light Red Blue Infrared Red 3030 LED SMD Chip 120° Viewing Angle 3 Year Warranty
