Light up the world with our “chip"
3 Years
| Ask Lasest Price | |
| Brand Name : | HuanYu Dream |
| Model Number : | HY-2835W50B36-1S |
| Certification : | RoHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Paypal,Ali Pay |
| Supply Ability : | 500000pcs/Day |
| Delivery Time : | 7-9 Work Days |
0.2W 5000K 2835 High luminous Efficiency White Led Chip Smd Description
1. Packaging: SMD (smd) package.
2. Luminosity: High luminosity efficiency, reaching above 36 lm.
3. Power efficiency: Above 80%.
4. Lifespan: Long lifespan, reaching up to several hundred thousand hours.
5. Color: Could be produced in various colors, including red, green, blue, and white.
6. Flat packaging: Easy to integrate into various electronic devices.
7. Miniaturization: Miniature in size, easy to integrate into various electronic devices.
8. Adjustable luminosity: Customize the current and voltage to change the luminosity and color.
0.2W 2835 White Led Chip Features
1).Super stability: low light fades material, process, process maturity and stability.
2).0.2W 2835 white led chip vertical structure: Chip direct
conduction fins to improve the heat dissipation performance, which
can withstand the higher current (40-60mA)
3).High optical efficiency: higher than 3528,3014 luminous
efficiency 2-3 times the luminous efficiency of up to 90-100LM / W;
4).Large heat sink: larger than 3528,3014 heat sink 2-3 times, excellent heat dissipation design, light decay of LED chip life more secure
5).Oversized light-emitting surface: to improve the rate of light: up to 90%.
6). The high cost: to achieve the same luminous flux, than 3528,3014 costs reduced more than 20%
7).High luminous efficiency: It can convert electrical energy into light energy more effectively, providing brighter illumination with less power consumption.
| Models | HY-2835W60B26-1S | |
| Electronic power | 0.2W | |
| Color temperature | 6000K/5000K/4000K | |
| VF | 3.0-3.4V | |
| IF | 60mA | |
| LUMINUOUS EFF | 26-28lm | |
| WHOLE SIZE | 2.8*3.5mm | |
| CHIP Brand | Sanan/Epistar | |
| VIEW ANGLE | 120° | |
| Warranty | 3 years | |
| Leading time | 8-12days | |
| Super long lifetime | >50000hours | |
0.2W 2835 White Led Chip Application
● LED Panel lights
● LED bulb lights
● LED tube lights
● LED strip lights
● LED spot lights etc.

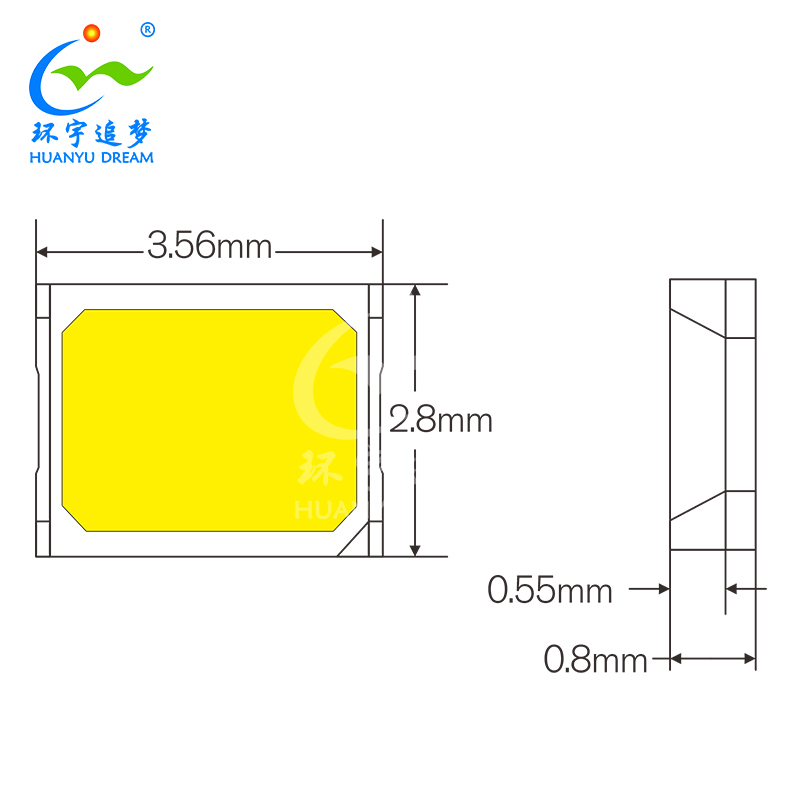

0.2W 2835 SMD LED Chip Dimension(Tolerance:+/-0.1mm. Unit:mm) (Mark is cathode)
0.2 W 2835 SMD LED Chip Package Specifications(Tolerance:+/-0.1mm. Unit:mm) The LEDs are packed in cardboard boxes after taping.
Reel Dimension
Q1. Could I have a sample order for led light?
A: Yes, we offer sample order to test out quality . Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 4-5 days, bulk quantity needs 5-8 days according to the order quantity and inventory.
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs as a sample order. We accept T/T Paypal and Western Union and so on.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places
Q6: Can you make other products?
A: Yes, we offer customization service based on customer's demand.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
|
|
