| Brand Name : | HuanYu Dream |
| Model Number : | HY-5730G520L30-1S |
| Certification : | RoHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Paypal,Ali Pay |
| Supply Ability : | 500kpcs/Day |
| Delivery Time : | 7-9 Work Days |

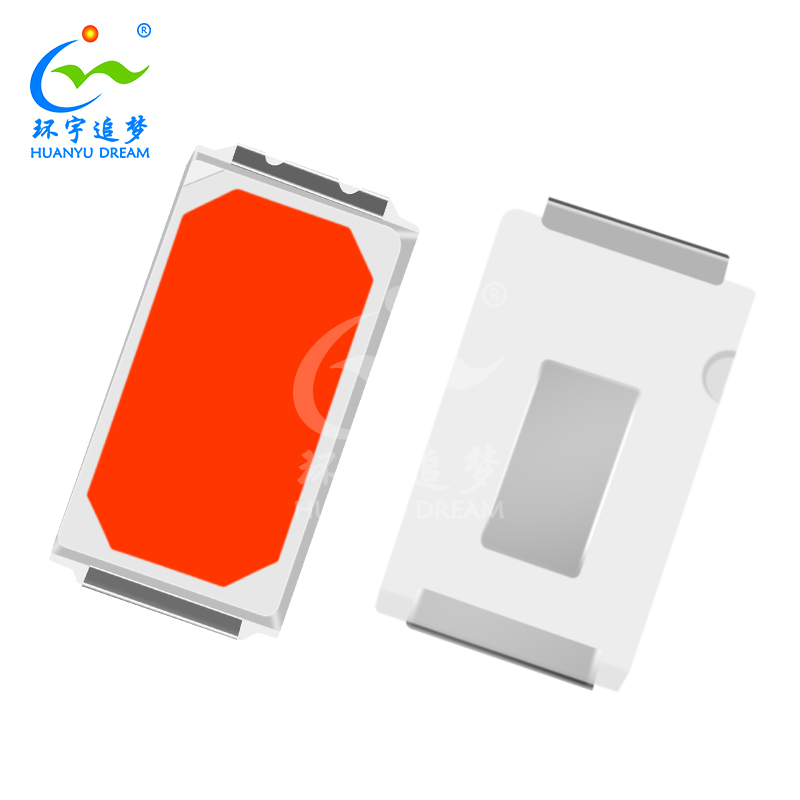

Surface Mount LEDs 5730 Smd Led Chip Red 3V 150mA 0.5W 5730 smd led diode
Led SMD 5730 Red Introduction
5730 SMD LED Diode, Plcc-2 Surface Mount SMT 5730,Gold wire, copper bracket, Epistar chip, long lifespan, Super high brightness, Wide Viewing Angle: 120 Degrees
Parameters: DC 3.0V-3.2V Volt 150mA; 2.0-2.2v 60mA (Red/Yellow), Size: 5.7 X 3.0 X 0.8 (mm), Anode and Cathode Polarity: Please Refer to A+ page, Surface-Mount Device, Pack of 100 Pieces LED diode(mini Chip)
CUSTOMIZE YOUR LIFE: Light up your dashboard with a unique pop of color unlike anyone else. Replace the LEDs in your car dash, truck, motorcycle instrument cluster, xbox controller, or anywhere else. Outstanding value for brightness.
ENDLESS POSSIBILITIES: 1000's of creative uses, whether you want to light up your car, truck, boat, house, our high quality Surface Mount SMD PLCC-2 5730/5630 LEDs are just what you need. The project ideas are endless, and we love seeing new ways our customers use our LEDs. Send us your application photos!
LIFETIME GUARANTEE: We sell products that last. Our rock-solid guarantee means we'll replace you it if there's ever a problem. Pass it on to the next generation with confidence.
Led SMD 5730 Red Dimension (Tolerance:+/-0.1mm. Unit:mm)
Led SMD 5730 Red Details
Initial Electrical/Optical Characteristics (TA=25±5ºC)
| Symbol | Item | Units | Min. | Typ. | Max. | Test Conditions |
| VF | Forward Voltage | V | 2.0 | 2.4 | IF=150mA | |
| IR | Reverse Current | uA | - | - | 5 | VR=5V |
| 2θ½ | Viewing Angle | º | - | 120º | - | IF=150mA |
| ø | Luminous flux | lm | 20 | 25 | IF=150mA | |
| IV | Light intensity | mcd | 6500 | 8000 | IF=150mA | |
| WLD | Dominant wavelength | nm | 620 | 625 | 630 | IF=150mA |
Absolute Maximum Ratings (TA=25±5ºC)
| Item | Symbol | Absolute Maximum Rating | Unit |
| Forward Current | IF | 150 | mA |
| Pulse Forward Current | IFP | 200 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 600 | mW |
| Operating Temperature | Topr | -40ºC To +85ºC | °C |
| Storage Temperature | Tstg | -40ºC To +85ºC | °C |
| Soldering Temperature | Tsld | Reflow Soldering: 260ºC Hand Soldering : 350ºC | for 10sec. for 3sec. |
Led SMD 5730 Red Application
About us
Q3: What about the lead time?
A3: Generally, it will take 3-5 working days for sample and 7-25
working days for mass order.
Q4: Do you accept customized products?
A4: Yes, we can offer OEM and ODM service as per your request.
Please kindly leave us messages about your requirements, our sales
engineer will check the details as soon as possible.
Q5: How many years of warranty of products you offer? And how do
you deal with the LED working issues?
A5: We offer 3-year warranty by default, and longer warranty can be
negotiated. If there is any problem with the product during the
warranty, please feel free to contact us.
|
|
