Light up the world with our “chip"
3 Years
| Ask Lasest Price | |
| Brand Name : | HuanYu Dream |
| Model Number : | JC-5047W56-24C48B-500–H5 |
| Certification : | RoHS |
| Price : | Negotiated |
| Payment Terms : | T/T, Paypal,Ali Pay |
| Supply Ability : | 30000 units per day |
| Delivery Time : | 10-15 Work Days |

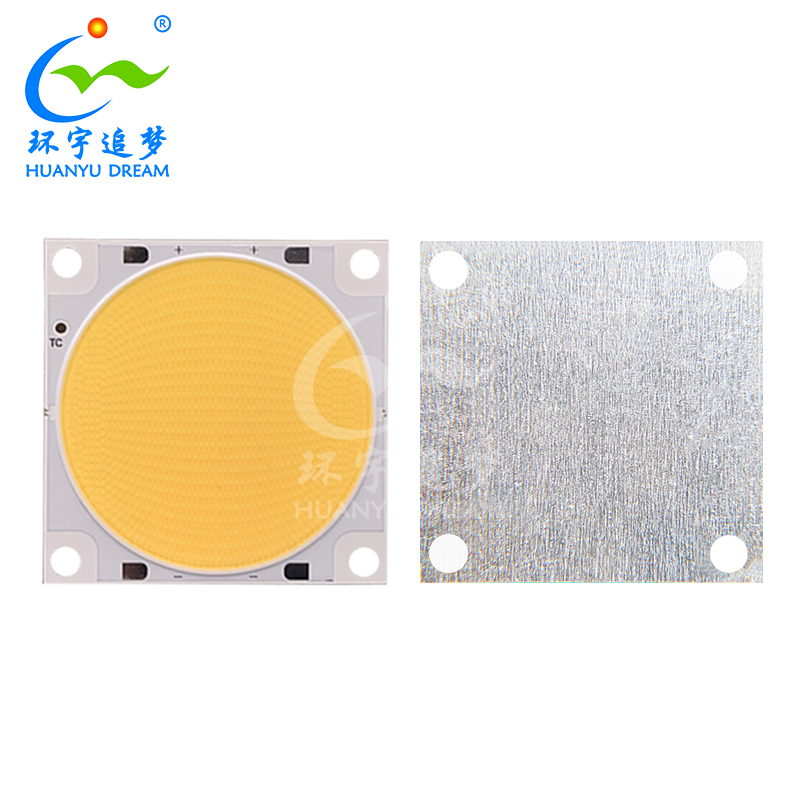

500W 3000K 4000K 5600K 6500K 5047 COB LED CRI97+ High CRI LED For Photography Lamps
500W 5050 COB Led Chips
* Dimension 50.0 mm×50.0 mm×2.4 mm
* Wide viewing angle : 120°
* CRI: 97
* RoHS compliant
* Sulphation corrosion resistance
* Manual Soldering
* The White LED which was fabricated using a blue chip and phosphor
High Power COB LED 50*50mm 500W | |
| Model No. | HY05047-57D3-2448B |
| Power | 500W |
| Current | 6800mA |
| Efficiency | 100-110lm/w (RA>95) 130-140LM/W(RA>80) |
| Color Temp | 2700-6000K |
| Voltage | 72-76V |
| Size | 50*50mm |
| Light Area | 47mm |
| Series&Parallel | 24S48P |
| SDCM | ≤3 |
| CRI | Ra 95-98 |
| Chip Brand | Bridgelux/ Sanan |
| Substrate material | Ceramics |
| Lifespan | 50000h |
| Warranty | 3years |
Package Dimension

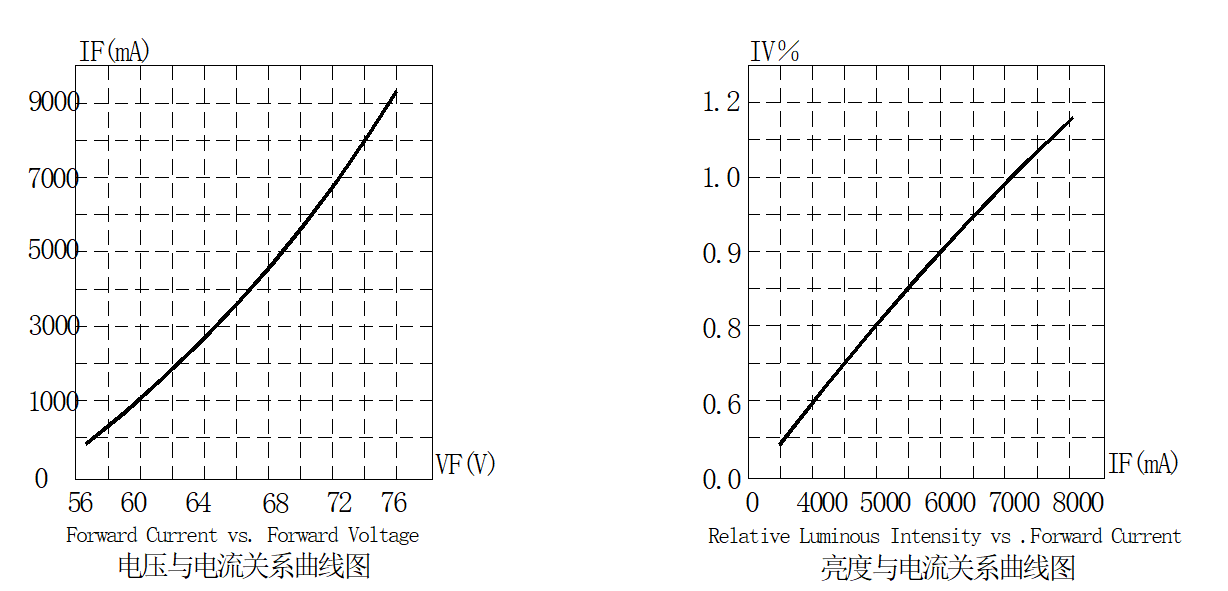

Optica Characteristic curve
500W 5050 COB Led Chips Applications
* Indoor/outdoor lighting.
* Spot light
* Down light
* General use.
Q2: Can I get some samples for tests?
A2: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and
performance. But our clients should pay for the shipping freight themselves.
Q3: What about the lead time?
A3: Generally, it will take 3-5 working days for sample and 7-25
working days for mass order.
Q4: Do you accept customized products?
A4: Yes, we can offer OEM and ODM service as per your request.
Please kindly leave us messages about your requirements, our sales
engineer will check the details as soon as possible.
Q5: How many years of warranty of products you offer? And how do
you deal with the LED working issues?
A5: We offer 3-year warranty by default, and longer warranty can be
negotiated. If there is any problem with the product during the warranty, please feel free to contact us.
|
|
