| Brand Name : | HuanYu Dream |
| Model Number : | JC-1311W60-12C4B-20-J3 |
| Certification : | RoHS |
| Price : | Negotiated |
| Payment Terms : | T/T, Paypal,Ali Pay |
| Supply Ability : | 30000 units per day |
| Delivery Time : | 10-15 Work Days |

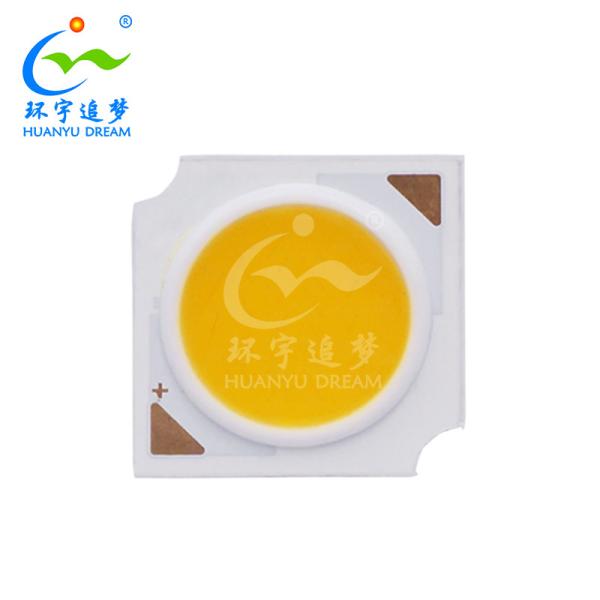

20W High CRI 1313 COB Led Chip 4000K-6000K 600mA 34-38V Cob Led
20W 1313 COB Led Chips Features
* Dimension 13.50mm×13.50mm×1.5mm
* CRI: 95
* Wide viewing angle : 120°
* RoHS compliant
* Sulphation corrosion resistance
* Manual Soldering
* The White LED which was fabricated using a blue chip and phosphor
20W 1313 COB Led Chips Details
Electrical - Optical Characteristics at Ta=25℃
Type | Symbol | Test condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF=600mA | 34 | -- | 38 | V |
4000K-6000K | φ | IF=600mA | 2800 | -- | 3300 | Lm |
Viewing Angle | 2θ1/2 | IF=600mA | -- | 120 | -- | Deg |
Color Rendering Index | CRI | IF=600mA | 95 | -- | 98 | -- |
Thermal resistance | Rth(j-s) | IF=600mA | -- | -- | 0.67 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
Parameter | Symbol | Rating | Units |
Power Dissipation | Pd | 25 | W |
Forward Current | IF | 600 | mA |
Peak Forward Current | IFP | 660 | mA |
Junction temperature | Tj | 115 | ℃ |
Solder temperature | Ts | 350 | ℃ |
Operating Temperature | Topr | -40 ~ + 85 | ℃ |
Storage Temperature | Tstg | -40 ~ + 100 | ℃ |

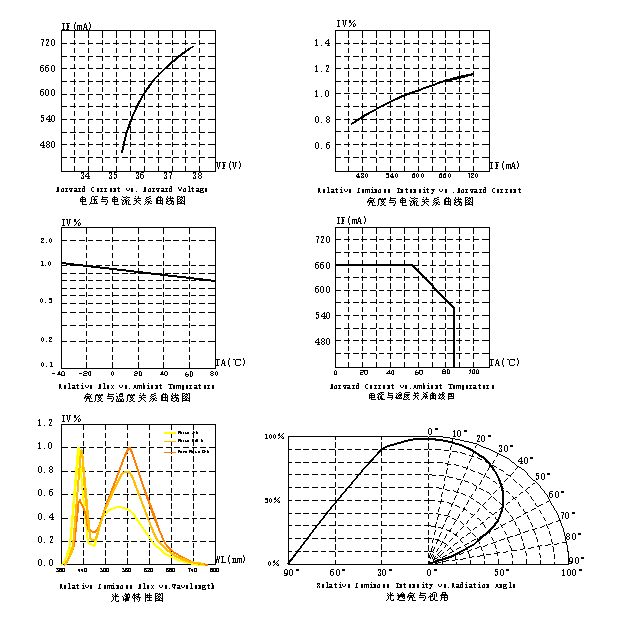

Optica Characteristic curve

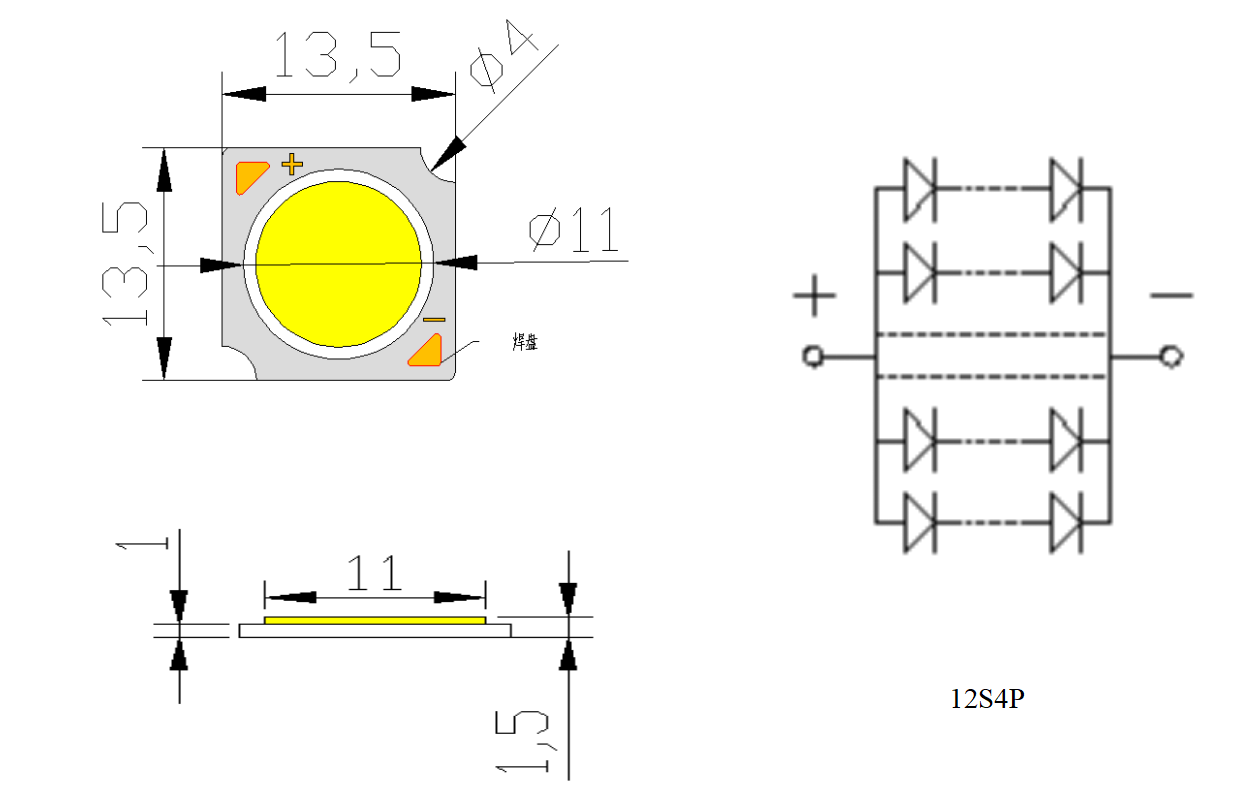

Package Dimension
20W 1313 COB Led Chips Applications
Widely used in Mobile phone flash, Automotive signal lighting, Automotive interior / Exterior lighting, Automotive forward lighting,Torch, Architectural lighting, LCD TV / Monitor backlight, Projector light source, Traffic signals, Task lighting, Decorative / Pathway lighting, Remote / Solar powered lighting, Household appliances and so on.
|
|
