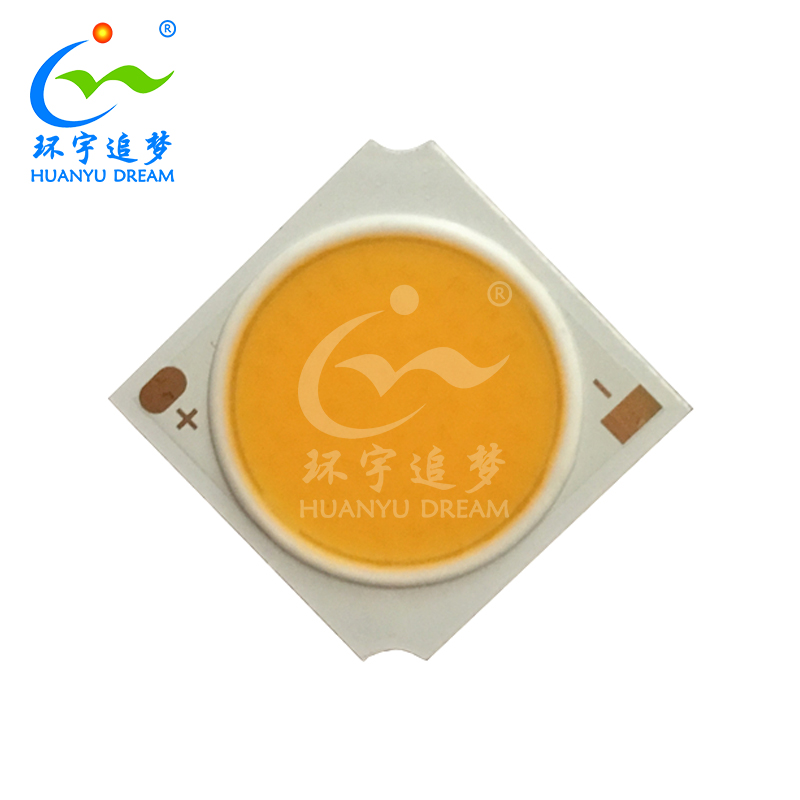

1313 COB LED 15W 2900K-3100K CRI 80 COB Chip On Board LED

Ask Lasest Price
Brand Name :	HuanYu Dream
Model Number :	JC-1311W30-12C3B-15-D5
Certification :	RoHS
Price :	Negotiated
Payment Terms :	T/T, Paypal,Ali Pay
Supply Ability :	30000 units per day
Delivery Time :	10-15 Working Days

Add to Cart

Product Details
Company Profile

1313 COB LED 15W 2900K-3100K CRI 80 COB Chip On Board LED

15W 1313 Cob Led Chips 2900K-3100K CRI 80 Cob Chip On Board Led

15W 1313 COB Led Chips Features

* Dimension 13.50mm×13.50mm×1.5mm

* Wide viewing angle : 120°

* CRI: 80

* RoHS compliant

* Sulphation corrosion resistance

* Manual Soldering

* The White LED which was fabricated using a blue chip and phosphor

15W 1313 COB Led Chips Details

Electrical - Optical Characteristics at Ta=25℃

Type	Symbol	Test condition	Value			Unit
Type	Symbol	Test condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	IF=420mA	34	--	38	V
2900K-3100K	φ	IF=420mA	2000	--	3000	Lm
Viewing Angle	2θ1/2	IF=420mA	--	120	--	Deg
Color Rendering Index	CRI	IF=420mA	80	--	83	--
Thermal resistance	Rth(j-s)	IF=420mA	--	--	0.67	℃/W

Absolute Maximum Ratings at Ta=25℃

Parameter	Symbol	Rating	Units
Power Dissipation	Pd	15	W
Forward Current	IF	420	mA
Peak Forward Current	IFP	540	mA
Junction temperature	Tj	115	℃
Solder temperature	Ts	350	℃
Operating Temperature	Topr	-40 ~ + 85	℃
Storage Temperature	Tstg	-40 ~ + 100	℃

Optica Characteristic curve

Package Dimension

Packaging Specifications

49 PCS/Tray 10Tray/ESD Shieding Bag:490pcs

15W 1313 COB Led Chips Applications

* Indoor/outdoor lighting.

* Spot light

* Down light

* General use.

FAQ

Q1: Are you a factory or a trade company?

A: We are the manufacturer specialize in smd and cob led chips since 2013.

Q2: Can I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.

Q3: What about the lead time?
A: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.

Q4: Do you accept customized products?
A: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.

Q5: How to process the order?
A: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.
