| Brand Name : | HuanYu Dream |
| Model Number : | HY-3528W60A7-1S |
| Certification : | RoHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Paypal,Ali Pay |
| Supply Ability : | 500kpcs/Day |
| Delivery Time : | 7-9 Work Days |

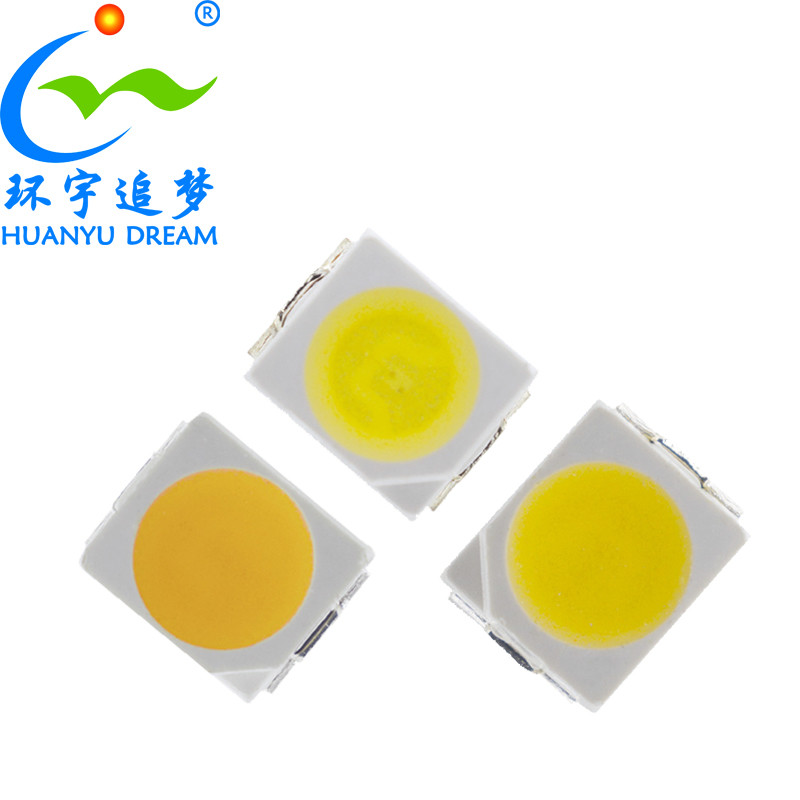

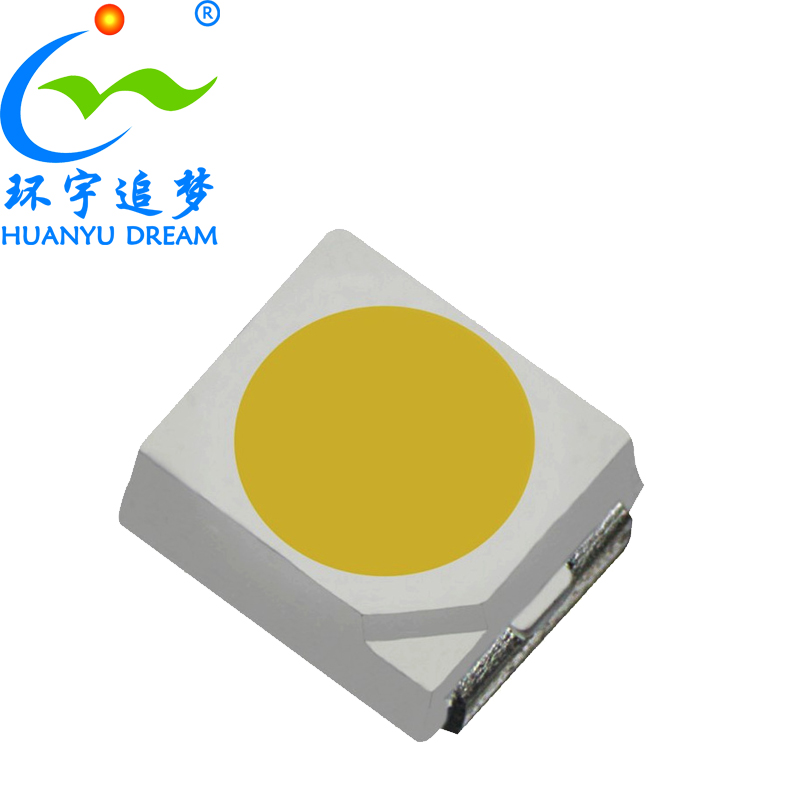

3528 Smd Led Chip 0.06W 20mA 3V White Smd Led
3528 Smd Led Chip Features
3528 Smd Led Chip Details
| Electronic power | 0.06W | |||
| Color temperature | 3000-3500K | 4000-4500K | 6000-6500K | 6500-7000K |
| VF | 2.8-3.0V | 2.7-2.9V | 3.0-3.2V | 3.0-3.2V |
| IF | 20mA | 20mA | 20mA | 20mA |
| CRI | 70 | 70 | 80 | 70 |
| LUMINUOUS EFF | 8-10lm | 8-10lm | 8-10lm | 8-9lm |
| Warranty | 3 years | |||

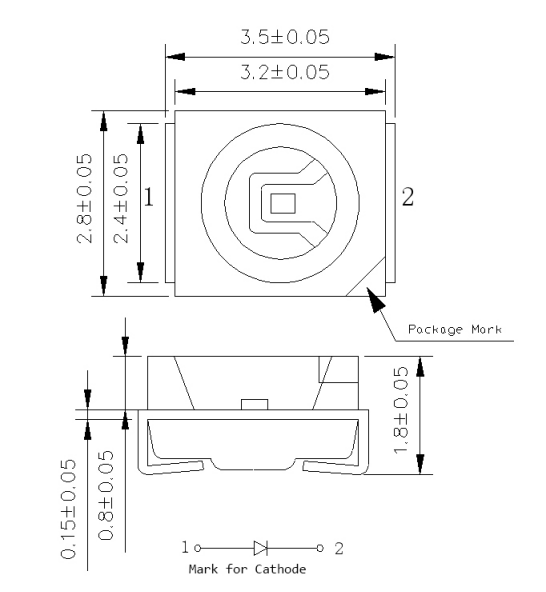

3528 Smd Led Chip Product Dimension (Tolerance:+/-0.1mm. Unit:mm)
Electrical / Optical characteristics
(1) Absolute Maximum Ratings (TA=25±5ºC)
| Item | Symbol | Absolute Maximum Rating | Unit |
| Forward Current | IF | 20 | mA |
| Pulse Forward Current | IFP | 50 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 100 | mW |
| Operating Temperature | Topr | -40ºC To +85ºC | °C |
| Storage Temperature | Tstg | -40ºC To +85ºC | °C |
| Soldering Temperature | Tsld | Reflow Soldering: 260ºC Hand Soldering : 300ºC | for 10sec. for 3sec. |
(2)Initial Electrical/Optical Characteristics (TA=25±5ºC)
| Symbol | Item | Units | Min. | Typ. | Max. | Test Conditions |
| VF | Forward Voltage | V | 3.0 | 3.2 | 3.4 | IF=20mA |
| IR | Reverse Current | uA | - | - | 5 | VR=5V |
2θ½ | Viewing Angle | º | - | 120º | - | IF=20mA |
| ø | Luminous flux | lm | 7 | 8 | IF=20mA | |
| IV | Light intensity | mcd | 2200 | 2500 | IF=20mA | |
| WLD | Color Temperature | K | 6000 | 6500 | IF=20mA |
3528 Smd Led Chip Application
Q2: Can I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and
performance. But our clients should pay for the shipping freight themselves.
Q3: What about the lead time?
A: Generally, it will take 3-5 working days for sample and 7-25
working days for mass order.
Q4: Do you accept customized products?
A4: Yes, we can offer OEM and ODM service as per your request.
Please kindly leave us messages about your requirements, our sales
engineer will check the details as soon as possible.
Q5: How many years of warranty of products you offer? And how do
you deal with the LED working issues?
A: We offer 3-year warranty by default, and longer warranty can be
negotiated. If there is any problem with the product during the warranty, please feel free to contact us.
|
|
