| Brand Name : | HYZM |
| Model Number : | HY-1310RGBW-01-8-30-D5 |
| Certification : | RoHS |
| Price : | negiotated |
| Payment Terms : | T/T |
| Supply Ability : | 10000 pcs/month |
| Delivery Time : | 5-10 days |

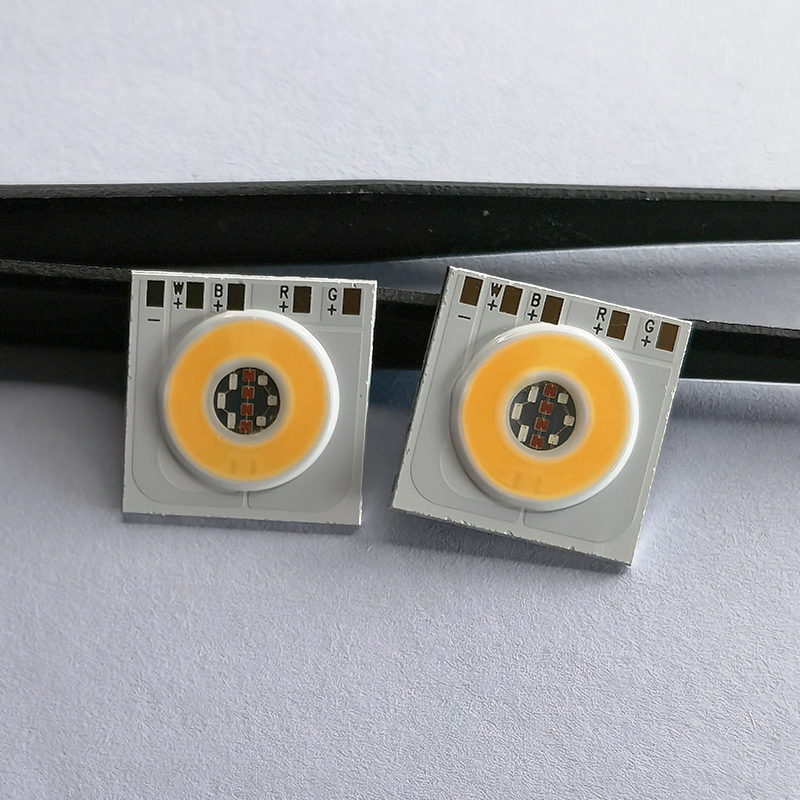

8 Watts 4 In 1 1313 RGBW COB Led Chips Red Green Blue White Full Color Details
Rgbww rgbcw cob led 1313 8w-12w | ||||||||
Artikel | Stroom | Kleur | Spanning | Stroom | Wd/cct | Serie | Lomp | Cri |
1310 Rgb + w Cob led | 8w | Rood | 8-10v | 150ma | 620-625nm | 4s 1p | 70-90lm | / |
Groen | 150ma | 520-525nm | 3s 1p | 80-100lm | / | |||
Blauw | 150ma | 460-465nm | 3s 1p | 20-30lm | / | |||
Wit | 300ma | 3000k | 3s 4p | 800-1100lm | 80ra | |||
Packge Dimension(Units:mm)
49PCS/Tray 10Tray/ESD Shieding Bag:490pcs
Electrical - Optical Characteristics at Ta=25℃
Type | Symbol | Test condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| WaveLength(B) | λd | IF=150mA | 460 | -- | 470 | nm |
| WaveLength(R) | λd | IF=150mA | 620 | -- | 630 | nm |
| WaveLength(G) | λd | IF=150mA | 520 | -- | 530 | nm |
| Correlated Colour Temperature | CCT | IF=300mA | 2900 | 3100 | k | |
| Luminous Flux(B) | φv | IF=150mA | 20 | 30 | LM | |
| Luminous Flux(R) | φv | IF=150mA | 70 | 90 | LM | |
| Luminous Flux(G) | φv | IF=150mA | 80 | 100 | LM | |
| Luminous Flux(W) | φv | IF=300mA | 800 | 1100 | LM | |
| Forward Voltage(B) | VF | IF=150mA | 8 | 10 | V | |
| Forward Voltage(R) | VF | IF=150mA | 8 | 10 | V | |
| Forward Voltage(G) | VF | IF=150mA | 8 | 10 | V | |
| Forward Voltage(W) | VF | IF=300mA | 8 | 10 | V | |
| Power(B) | PD | IF=150mA | 1.5 | W | ||
| Power(R) | PD | IF=150mA | 1.5 | W | ||
| Power(G) | PD | IF=150mA | 1.5 | W | ||
| Power(W) | PD | IF=300mA | 3 | 6 | W | |
| Thermal resistance | Rth(j-s) | IF=150mA | -- | -- | 0.85 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Rating | Units |
| Junction temperature | Tj | 115 | ℃ |
| Solder temperature | Ts | 350 | ℃ |
| Operating Temperature | Topr | -40 ~ + 85 | ℃ |
| Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
Application
Production Process
Q2: Can I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive
understanding about our LED quality and performance. But our
clients should pay for the shipping freight themselves.
Q3: What about the lead time?
A: Generally, it will take 3-5 working days for sample and 7-25
working days for mass order.
Q4: How many years of warranty of products you offer? And how do
you deal with the LED working issues?
A: We offer 3-year warranty by default, and longer warranty can be
negotiated. If there is any problem with the product during the
warranty, please feel free to contact us.
Q5: Do you accept customized products?
A: Yes, we can offer OEM and ODM service as per your request.
Please kindly leave us messages about your requirements, our sales
engineer will check the details as soon as possible.
|
|
