| Brand Name : | HuanYu Dream |
| Model Number : | HY-1917D2065-7S5P-14-F3 |
| Certification : | RoHS |
| Price : | Negotiated |
| Payment Terms : | T/T, Paypal,Ali Pay |
| Supply Ability : | 30000 units per day |
| Delivery Time : | 10-15 Work Days |

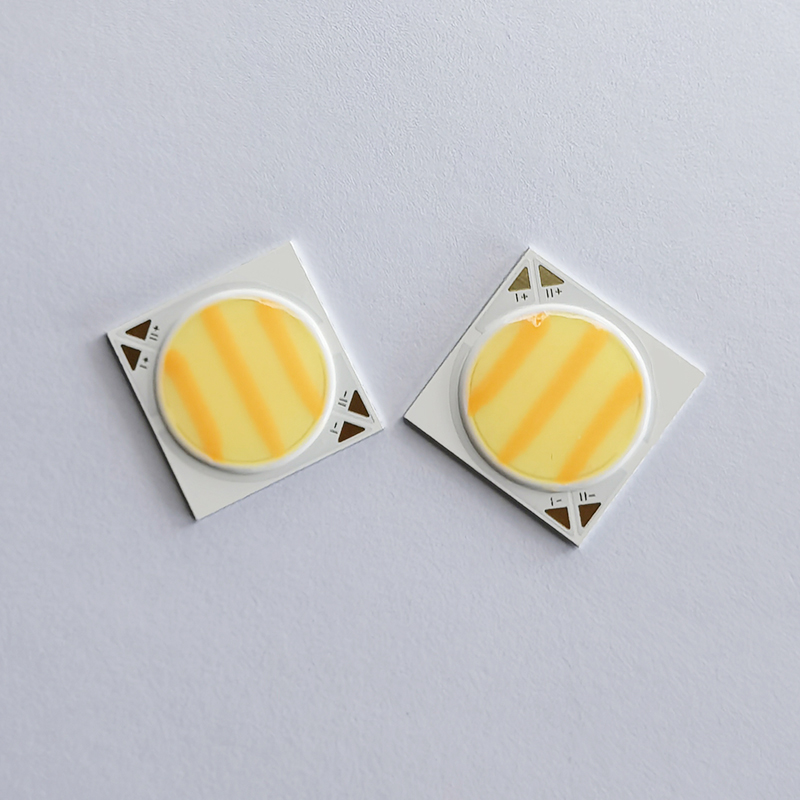

1919 Bi-color COB Led Chip
* Dimension 19.0mm×19.0mm×1.5mm
* CRI: 90
* Wide viewing angle : 120°
* RoHS compliant
* Sulphation corrosion resistance
* Manual Soldering
* The White LED which was fabricated using a blue chip and phosphor
* Pure gold wire 99.99% bonding chips in circular array
* High quality mirror surface aluminum substrate applied
1919 Bi-color COB Led Chip Package Dimension
1919 Bi-color COB Led Chip Details
Electrical - Optical Characteristics at Ta=25℃
Type | Symbol | Test condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| Forward Voltage | VF | IF=300mA | 20 | 22 | 24 | V |
| 2700K-2900K | φ | IF=300mA | 600 | -- | 900 | Lm |
| 5400K-5700K | φ | IF=300mA | 700 | -- | 1000 | Lm |
| Viewing Angle | 2θ1/2 | IF=300mA | 120 | Deg | ||
| Color Rendering Index | CRI | IF=300mA | 90 | -- | 93 | -- |
| Thermal resistance | Rth(j-s) | IF=300mA | -- | -- | 0.67 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Rating | Units |
| Power Dissipation | Pd | 7*2W | W |
| Forward Current | IF | 300 | mA |
| Peak Forward Current | IFP | 390 | mA |
| Junction temperature | Tj | 115 | ℃ |
| Solder temperature | Ts | 350 | ℃ |
| Operating Temperature | Topr | -40 ~ + 85 | ℃ |
| Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
Optica Characteristic curve
1919 Bi-color COB Led Chip Applications
Industry Standard Size Chip-on-Board package provide utmost flexibility to both indoor and outdoor applications
Premium commercial lighting
Industrial lighting
Residential lighting
Special lighting (horticulture, studio lightingfilm
&photography lighting)
Great COB LED Chip for down lights, track lights, spot light, flood
light, high bay light, low bay light, street light solar street
light, yard lights, garden lights, underwater lights, lighthouse,
par light, projector light, image light, etc
Q2: Can I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and
performance. But our clients should pay for the shipping freight themselves.
Q3: What about the lead time?
A: Generally, it will take 3-5 working days for sample and 7-25
working days for mass order.
Q4: Do you accept customized products?
A: Yes, we can offer OEM and ODM service as per your request.
Please kindly leave us messages about your requirements, our sales
engineer will check the details as soon as possible.
Q5: How many years of warranty of products you offer? And how do
you deal with the LED working issues?
A: We offer 3-year warranty by default, and longer warranty can be
negotiated. If there is any problem with the product during the warranty, please feel free to contact us.
|
|
