RGBCW COB Led Chip 1313 5 Colors in 1 Full Colors 10W 12V Cob Led Chips
Product Features
Dimension 13.5mm×13.5mm×1.5mm
Wide viewing angle : 120°
RoHS compliant
sulphation corrosion resistance
Manual Soldering
| Item | Power | Color | Voltage | Current | Wd/CCT | Series/ Parallel | Brighness | CRI |
1313 COB LED RGB+WW+CW | 9W | Red | 10-12V | 150mA | 620-625nm | 6S1P | 110-120LM | / |
| Green | 520-525nm | 4S1P | 120-130LM | / | ||||
| Blue | 460-465nm | 4S1P | 40-50LM | / | ||||
| WW | 2700K | 4S1P | 210-230LM | 90 | ||||
| CW | 6000K | 4S1P | 190-210LM | 90 |
Product Details
| Product Name | 1313 RGBCW COB |
| Model Number | JC-1311RGBCW-2760-9-F0 |
| Dimension | 13.5mm×13.5mm×1.5mm |
| Color Temperature | 2700K+6000K |
| Input Voltage(V) | 12V |
| CCT | R+G+B+CW+WW |
| Application | Smart lighting |
Package Dimension
Electrical - Optical Characteristics at Ta=25℃
Type | Symbol | Test condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
WaveLength(B) | λd | IF=150mA | 460 | -- | 465 | nm |
WaveLength(R) | λd | IF=150mA | 620 | -- | 625 | nm |
WaveLength(G) | λd | IF=150mA | 520 | -- | 525 | nm |
Correlated Colour Temperature | CCT | IF=150mA | 2600 | 2700 | 2800 | k |
5800 | 6000 | 6200 | ||||
Luminous Flux(B) | φv | IF=150mA | 40 | 50 | LM | |
Luminous Flux(R) | φv | IF=150mA | 110 | 120 | LM | |
Luminous Flux(G) | φv | IF=150mA | 120 | 130 | LM | |
Luminous Flux(C) | φv | IF=150mA | 190 | 210 | LM | |
Luminous Flux(W) | φv | F=150mA | 210 | 230 | ||
Forward Voltage(B) | VF | IF=150mA | 12 | 14 | V | |
Forward Voltage(R) | VF | IF=150mA | 12 | 14 | V | |
Forward Voltage(G) | VF | IF=150mA | 11 | 13 | V | |
Forward Voltage(C) | VF | IF=150mA | 12 | 14 | V | |
Forward Voltage(W) | VF | IF=150mA | 12 | 14 | V | |
Color Rendering Index | CRI | IF=150mA | 90 | -- | 93 | -- |
Power(B) | PD | IF=150mA | 2 | W | ||
Power(R) | PD | IF=150mA | 2 | W | ||
Power(G) | PD | IF=150mA | 2 | W | ||
Power(C) | PD | IF=150mA | 2 | W | ||
Power(W) | PD | IF=150mA | 2 | W | ||
Thermal resistance | Rth(j-s) | IF=150mA | -- | -- | 0.85 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
Parameter | Symbol | Rating | Units |
Junction temperature | Tj | 115 | ℃ |
Solder temperature | Ts | 350 | ℃ |
Operating Temperature | Topr | -40 ~ + 85 | ℃ |
Storage Temperature | Tstg | -40 ~ + 100 | ℃ |

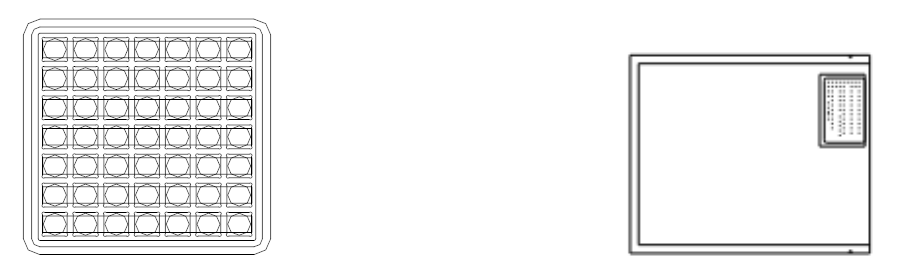

Packaging Specifications
49PCS/Tray 10Tray/ESD Shieding Bag:490pcs
Applications
Smart lighting.
Stage lighting.
Spot light
Down light
General use.
FAQ:
Q1.Can I have a sample order ?
A:Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2.Do you have any MOQ limit for the led light?
A:100 pieces for sample checking is available.
Q3:Is it OK to print my logo on product?
A:Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q4:Do you offer guarantee for the products?
A:Yes,we offer 3 years warranty.
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new led chips with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
|
|
