| Brand Name : | HuanYu Dream |
| Model Number : | HY-1917RGBCW-3060-25-01-D5 |
| Certification : | Rohs |
| Price : | Negotiable |
| Payment Terms : | T/T, Paypal,Ali Pay |
| Supply Ability : | 500K/Month |
| Delivery Time : | 7-9 Work Days |

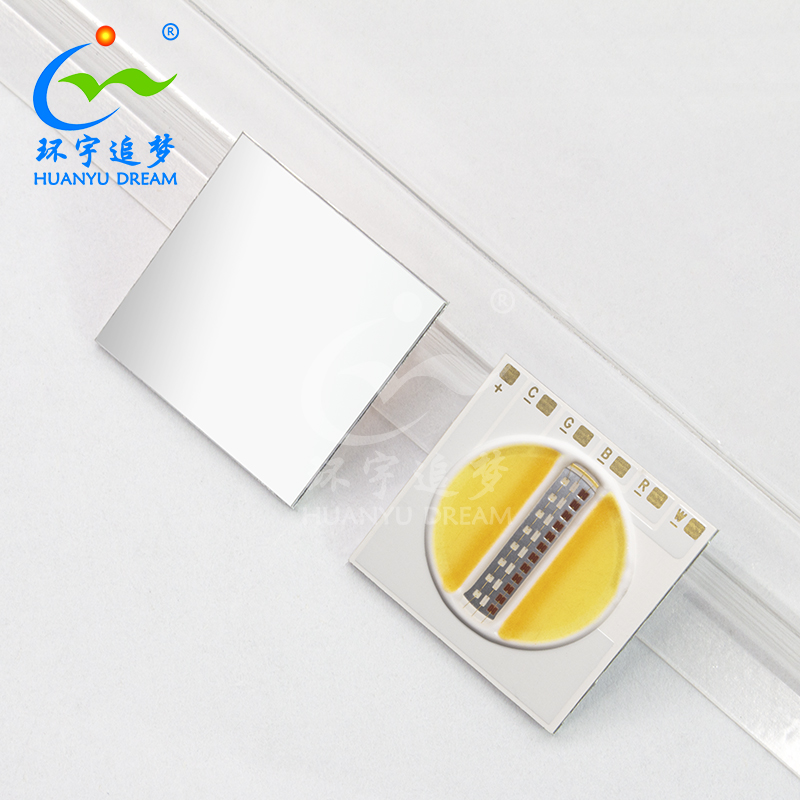

25W 300mA 1919 RGBCW LED COB Chip
5 in 1 RGBCW LED COB Chip design advantages
Package Dimension

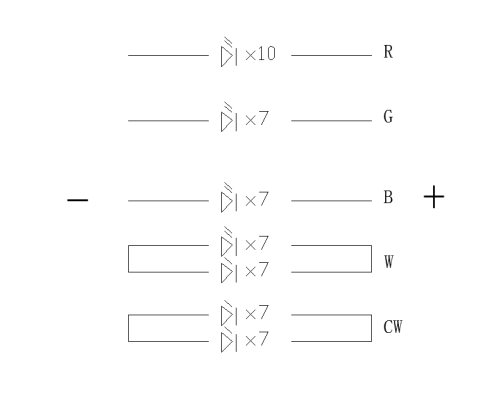

| Green 7S1P |
| Red 10S1P |
| Blue7S1P |
| WW 7S2P |
| CW 7S2P |
Electrical - Optical Characteristics at Ta=25℃
Type | Symbol | Test condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| WaveLength(B) | λd | IF=150mA | 460 | -- | 465 | nm |
| WaveLength(R) | λd | IF=150mA | 620 | -- | 630 | nm |
| WaveLength(G) | λd | IF=150mA | 520 | -- | 530 | nm |
| Correlated Colour Temperature cw | CCT | IF=300mA | 6000 | 6500 | k | |
| Correlated Colour Temperature w | CCT | IF=300mA | 2900 | 3100 | k | |
| Luminous Flux(B) | φv | IF=150mA | 50 | 70 | LM | |
| Luminous Flux(R) | φv | IF=150mA | 180 | 220 | LM | |
| Luminous Flux(G) | φv | IF=150mA | 220 | 260 | LM | |
| Luminous Flux(W) | φv | IF=300mA | 700 | 900 | LM | |
| Luminous Flux(CW) | φv | IF=300mA | 800 | 1000 | LM | |
| Forward Voltage(B) | VF | IF=150mA | 20 | 24 | V | |
| Forward Voltage(R) | VF | IF=150mA | 20 | 24 | V | |
| Forward Voltage(G) | VF | IF=150mA | 20 | 24 | V | |
| Forward Voltage(W) | VF | IF=300mA | 20 | 24 | V | |
| Forward Voltage(CW) | VF | IF=300mA | 20 | 24 | V | |
| Power(B) | PD | IF=150mA | 3 | 4 | W | |
| Power(R) | PD | IF=150mA | 3 | 4 | W | |
| Power(G) | PD | IF=150mA | 3 | 4 | W | |
| Power(W) | PD | IF=300mA | 6 | 7 | W | |
| Power(W) | PD | IF=300mA | 6 | 7 | W | |
| Thermal resistance | Rth(j-s) | IF=150mA | -- | -- | 1 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Rating | Units |
| Junction temperature | Tj | 115 | ℃ |
| Solder temperature | Ts | 350 | ℃ |
| Operating Temperature | Topr | -40 ~ + 85 | ℃ |
| Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
Application
Production Process
Q2: Can I get some samples for tests?
A2: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and
performance. But our clients should pay for the shipping freight themselves.
Q3: What about the lead time?
A3: Generally, it will take 3-5 working days for sample and 7-25
working days for mass order.
Q4: Do you accept customized products?
A4: Yes, we can offer OEM and ODM service as per your request.
Please kindly leave us messages about your requirements, our sales
engineer will check the details as soon as possible.
Q5: How many years of warranty of products you offer? And how do
you deal with the LED working issues?
A5: We offer 3-year warranty by default, and longer warranty can be
negotiated. If there is any problem with the product during the warranty, please feel free to contact us.
|
|
