| Brand Name : | HYZM |
| Model Number : | JC-1311RGBCW-2760-9-F0 |
| Certification : | RoHS |
| Price : | 5 |
| Payment Terms : | T/T |
| Supply Ability : | 10000 pcs/month |
| Delivery Time : | 5-10 days |
9W Constant Voltage 12V High CRI90 1313RGBCW COB LED Chip Description
This COB LED adopted mirror-surface aluminum base, circular chip array design, is widely applied to high-end professional commercial lighting with ultimate high light efficacy, CRI and heat conduction. CRI can go up to 90 with smooth and cozy light quality which brings great experience of light. The COB1313 LED is optimized for down light, par light, spot light, track light and projector lamp etc, which effectively replaces 50-500W commercial halogen lamp and incandescent lamp, etc.
RGBCW COB Chip Highlight white light output ,cri>90,Wider color gamut and more accurate color restoration,Exclusive rgbww color mixing technology,mainly use in film and television lighting, photography lighting, stage light,spot light Wedding, Live Streaming, Interview,Photography etc
1313RGBCW Features
·Aluminum base
·High intensity circular chip array
·RoHS compliant·> 30000 hrs
·Professional super high CRI commercial lighting
·Smooth light quality
1313RGBCW Details
| Product Name | 1313 RGBCW COB |
| Model Number | JC-1311RGBCW-2760-9-F0 |
| Dimension | 13.5mm×13.5mm×1.5mm |
| Color Temperature | 2700K+6000K |
| Input Voltage(V) | 12V |
| CCT | R+G+B+CW+WW |
| Application | Smart lighting |
| Item | Power | Color | Voltage | Current | Wd/CCT | Series/ Parallel | Brighness | CRI |
1313 COB LED RGB+WW+CW | 9W | Red | 10-12V | 150mA | 620-625nm | 6S1P | 110-120LM | / |
| Green | 520-525nm | 4S1P | 120-130LM | / | ||||
| Blue | 460-465nm | 4S1P | 40-50LM | / | ||||
| WW | 2700K | 4S1P | 210-230LM | 90 | ||||
| CW | 6000K | 4S1P | 190-210LM | 90 |

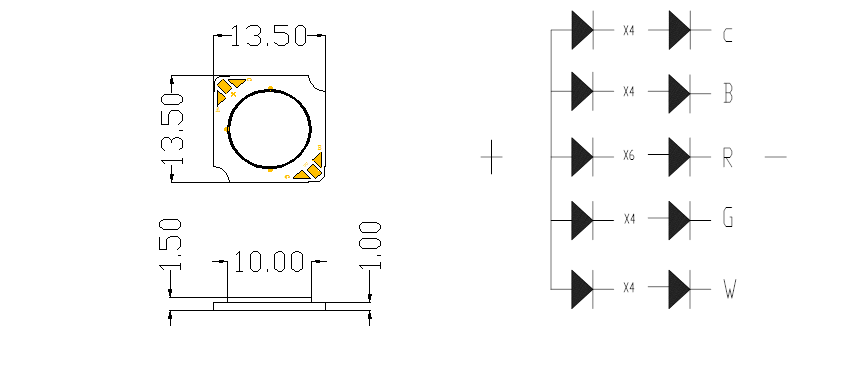

1313RGBCW Package Dimension
Packaging Specifications
49PCS/Tray 10Tray/ESD Shieding Bag:490pcs
Delivery
About US
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .
Q3. Do you have any MOQ limit for led light order?
A: MOQ is 100pcs for each model.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
|
|
