| Brand Name : | HYZM |
| Model Number : | COB1313RGBW |
| Certification : | RoHS |
| Price : | 5 |
| Supply Ability : | 10000 pcs/month |
| Delivery Time : | 10-15 Working Days |

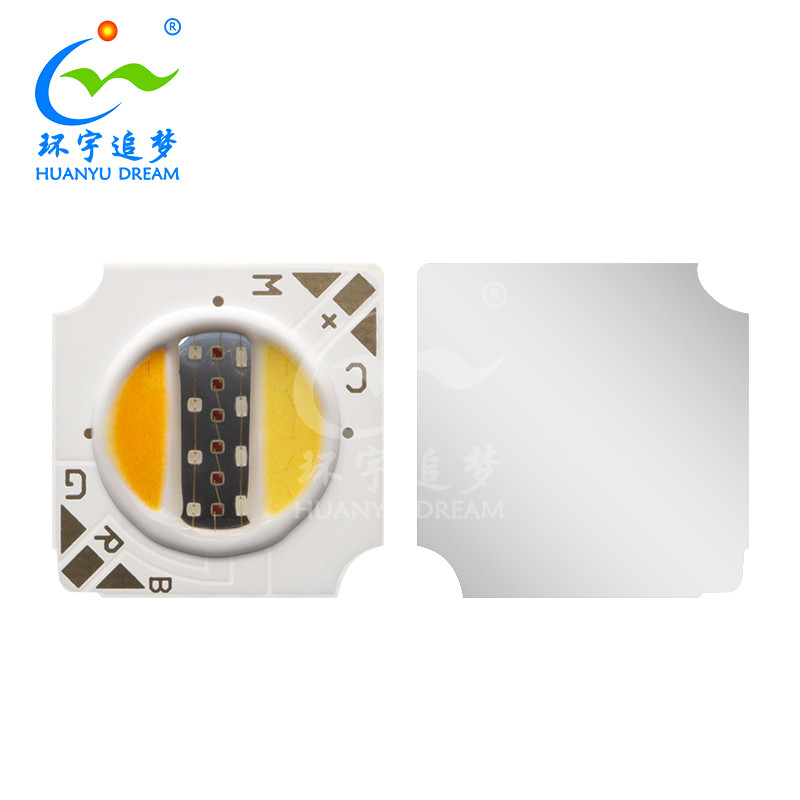

1313 Rgbcw Cob Led Chip Features
Dimension 13.5mm×13.5mm×1.5mm
Wide viewing angle : 120°
RoHS compliant
sulphation corrosion resistance
Manual Soldering
1313 Rgbcw Cob Led Chip Details
| Product Name | 1313 RGBCW COB |
| Model Number | JC-1311RGBCW-2760-9-F0 |
| Dimension | 13.5mm×13.5mm×1.5mm |
| Color Temperature | 2700K+6000K |
| Input Voltage(V) | 12V |
| CCT | R+G+B+CW+WW |
| Application | Smart lighting |
Package Dimension
| Item | Power | Color | Voltage | Current | Wd/CCT | Series/ Parallel | Brighness | CRI |
1313 COB LED RGB+WW+CW | 9W | Red | 10-12V | 150mA | 620-625nm | 6S1P | 110-120LM | / |
| Green | 520-525nm | 4S1P | 120-130LM | / | ||||
| Blue | 460-465nm | 4S1P | 40-50LM | / | ||||
| WW | 2700K | 4S1P | 210-230LM | 90 | ||||
| CW | 6000K | 4S1P | 190-210LM | 90 |
Packaging Specifications
49PCS/Tray 10Tray/ESD Shieding Bag:490pcs
Electrical - Optical Characteristics at Ta=25℃
Type | Symbol | Test condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
WaveLength(B) | λd | IF=150mA | 460 | -- | 465 | nm |
WaveLength(R) | λd | IF=150mA | 620 | -- | 625 | nm |
WaveLength(G) | λd | IF=150mA | 520 | -- | 525 | nm |
Correlated Colour Temperature | CCT | IF=150mA | 2600 | 2700 | 2800 | k |
5800 | 6000 | 6200 | ||||
Luminous Flux(B) | φv | IF=150mA | 40 | 50 | LM | |
Luminous Flux(R) | φv | IF=150mA | 110 | 120 | LM | |
Luminous Flux(G) | φv | IF=150mA | 120 | 130 | LM | |
Luminous Flux(C) | φv | IF=150mA | 190 | 210 | LM | |
Luminous Flux(W) | φv | F=150mA | 210 | 230 | ||
Forward Voltage(B) | VF | IF=150mA | 12 | 14 | V | |
Forward Voltage(R) | VF | IF=150mA | 12 | 14 | V | |
Forward Voltage(G) | VF | IF=150mA | 11 | 13 | V | |
Forward Voltage(C) | VF | IF=150mA | 12 | 14 | V | |
Forward Voltage(W) | VF | IF=150mA | 12 | 14 | V | |
Color Rendering Index | CRI | IF=150mA | 90 | -- | 93 | -- |
Power(B) | PD | IF=150mA | 2 | W | ||
Power(R) | PD | IF=150mA | 2 | W | ||
Power(G) | PD | IF=150mA | 2 | W | ||
Power(C) | PD | IF=150mA | 2 | W | ||
Power(W) | PD | IF=150mA | 2 | W | ||
Thermal resistance | Rth(j-s) | IF=150mA | -- | -- | 0.85 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
Parameter | Symbol | Rating | Units |
Junction temperature | Tj | 115 | ℃ |
Solder temperature | Ts | 350 | ℃ |
Operating Temperature | Topr | -40 ~ + 85 | ℃ |
Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
Applications
Smart lighting.
Stage lighting.
Spot light
Down light
General use.
