1313 Bi-Color COB Led Chip 900-1100lm 2700-5400K 12*2W 20-24V Ra 90
1313 Bi-Color COB Led Chip Introduction
* Dimension 13.50mm×13.50mm×1.5mm
* CRI: 90
* Wide viewing angle : 120°
* RoHS compliant
* Sulphation corrosion resistance
* Manual Soldering
* The White LED which was fabricated using a blue chip and phosphor
1313 Bi-Color COB Led Chip Details
Electrical - Optical Characteristics at Ta=25℃
Type | Symbol | Test condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| Forward Voltage | VF | IF=600mA | 18 | 20 | 22 | V |
| 2700K-2900K | φ | IF=600mA | 900 | -- | 1100 | Lm |
| 5400K-5800K | φ | IF=600mA | 1000 | -- | 1200 | Lm |
| Viewing Angle | 2θ1/2 | IF=600mA | 120 | Deg | ||
| Color Rendering Index | CRI | IF=600mA | 90 | -- | 93 | -- |
| Thermal resistance | Rth(j-s) | IF=600mA | -- | -- | 0.67 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
Parameter | Symbol | Rating | Units |
Power Dissipation | Pd | 12W*2 | W |
Forward Current | IF | 600 | mA |
Peak Forward Current | IFP | 700 | mA |
Junction temperature | Tj | 115 | ℃ |
Solder temperature | Ts | 350 | ℃ |
Operating Temperature | Topr | -40 ~ + 85 | ℃ |
Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
Optica Characteristic curve

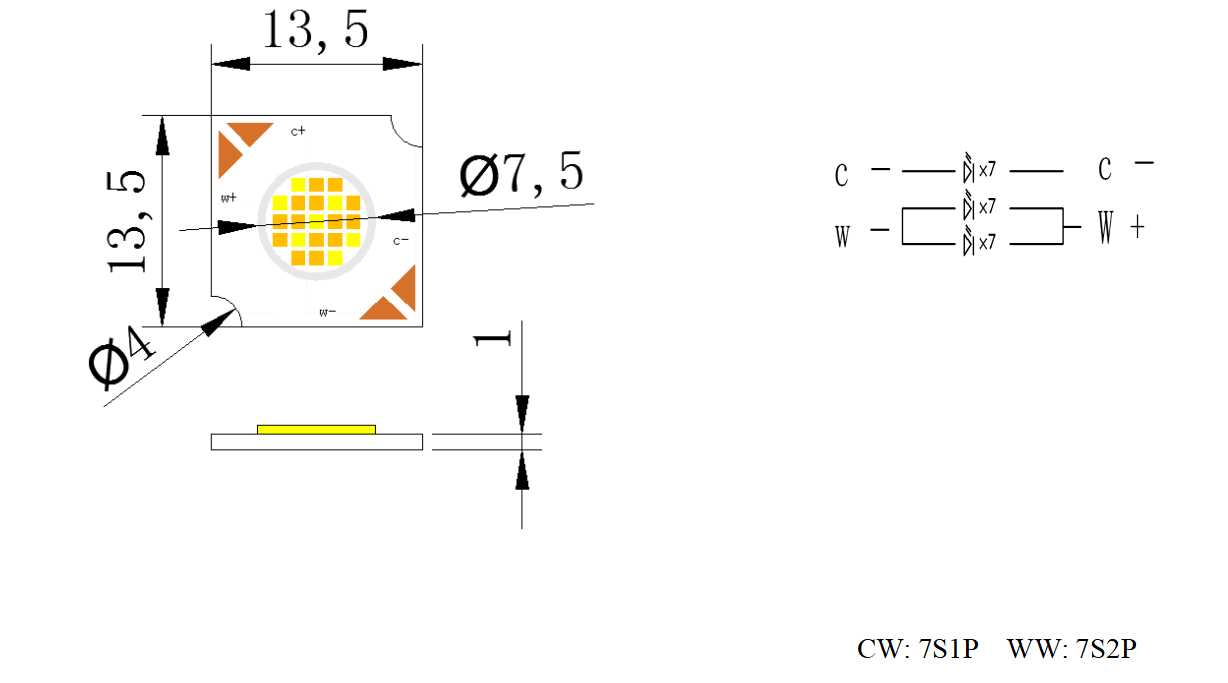

1313 Bi-color COB Led Chip Package Dimension
1313 Bi-Color COB Led Chip Applications
Production Process
Q2: Can I get some samples for tests?
Yes, we can offer free samples, so you can have an intuitive
understanding about our LED quality and performance. But our
clients should pay for the shipping freight themselves.
Q3: What about the lead time?
Generally, it will take 3-5 working days for sample and 7-25
working days for mass order.
Q4: Do you accept customized products?
Yes, we can offer OEM and ODM service as per your request. Please
kindly leave us messages about your requirements, our sales
engineer will check the details as soon as possible.
Q5: How many years of warranty of products you offer? And how do
you deal with the LED working issues?
We offer 3-year warranty by default, and longer warranty can be
negotiated. If there is any problem with the product during the
warranty, please feel free to contact us.
|
|
