Super Aluminum Substrate 12W 1917 3 In 1 RGB Led Cob Chip 1919 Cob Led Chips
1917 3 In 1 RGB Led Cob Details
The RGB color model is an additive color model in which the red,
green and blue primary colors of light are added together in
various ways to reproduce a broad array of colors. The name of the
model comes from the initials of the three additive primary colors,
red, green, and blue.
The main purpose of the RGB color model is for the sensing, representation, and display of images in electronic systems, such as televisions and computers, though it has also been used in conventional photography. Before the electronic age, the RGB color model already had a solid theory behind it, based in human perception of colors.
* Dimension 19.0 mm×19.0 mm×1.5 mm
* Wide viewing angle : 120°
* RoHS compliant
* Sulphation corrosion resistance
* Manual Soldering
* The White LED which was fabricated using a blue chip and phosphor
1917 3 In 1 RGB Led Cob Package Dimension
25 PCS/Tray
4Tray/ESD Shieding Bag:100pcs
1917 3 In 1 RGB Led Cob Specification
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Rating | Units |
| Junction temperature | Tj | 115 | ℃ |
| Solder temperature | Ts | 350 | ℃ |
| Operating Temperature | Topr | -40 ~ + 85 | ℃ |
| Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
Electrical - Optical Characteristics at Ta=25℃
| Type | Symbol | Test condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| WaveLength(B) | λd | IF=300mA | 457.5 | -- | 465 | nm |
| WaveLength(R) | λd | IF=300mA | 620 | -- | 630 | nm |
| WaveLength(G) | λd | IF=300mA | 520 | -- | 530 | nm |
| Luminous Flux(B) | φv | IF=300mA | 40 | 70 | LM | |
| Luminous Flux(R) | φv | IF=300mA | 150 | 200 | LM | |
| Luminous Flux(G) | φv | IF=300mA | 200 | 250 | LM | |
| Forward Voltage(B) | VF | IF=300mA | 11 | 13 | V | |
| Forward Voltage(R) | VF | IF=300mA | 11 | 13 | V | |
| Forward Voltage(G) | VF | IF=300mA | 11 | 13 | V | |
| Power(B) | PD | IF=300mA | 4 | W | ||
| Power(R) | PD | IF=300mA | 6 | W | ||
| Power(G) | PD | IF=300mA | 4 | W | ||
| Thermal resistance | Rth(j-s) | IF=300mA | -- | -- | 0.85 | ℃/W |

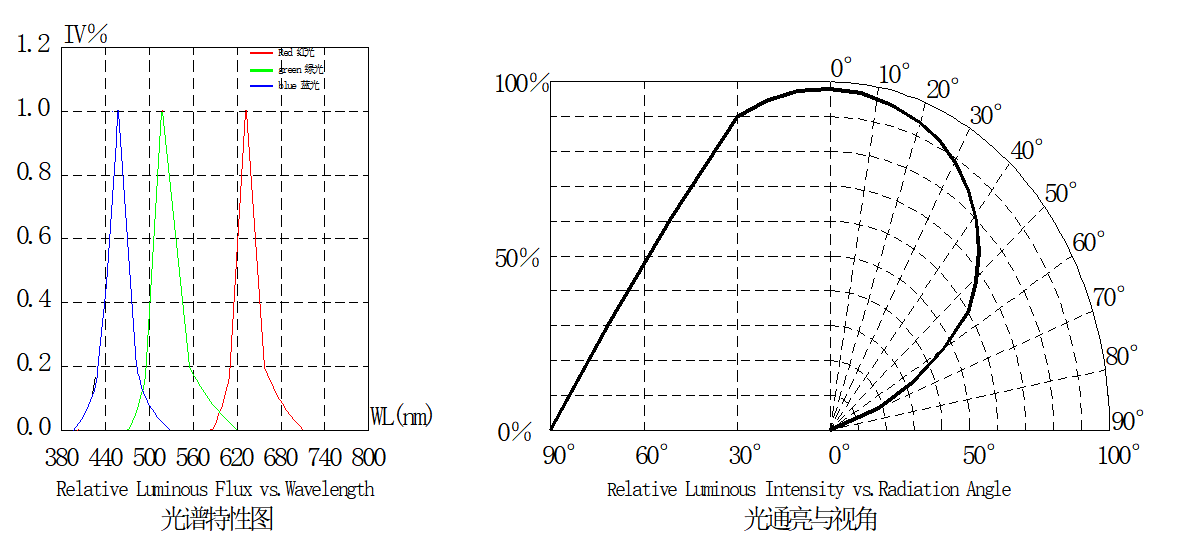

Optica Characteristic curve
1917 3 In 1 RGB Led Cob Application
Other 1917 Types Led Cob

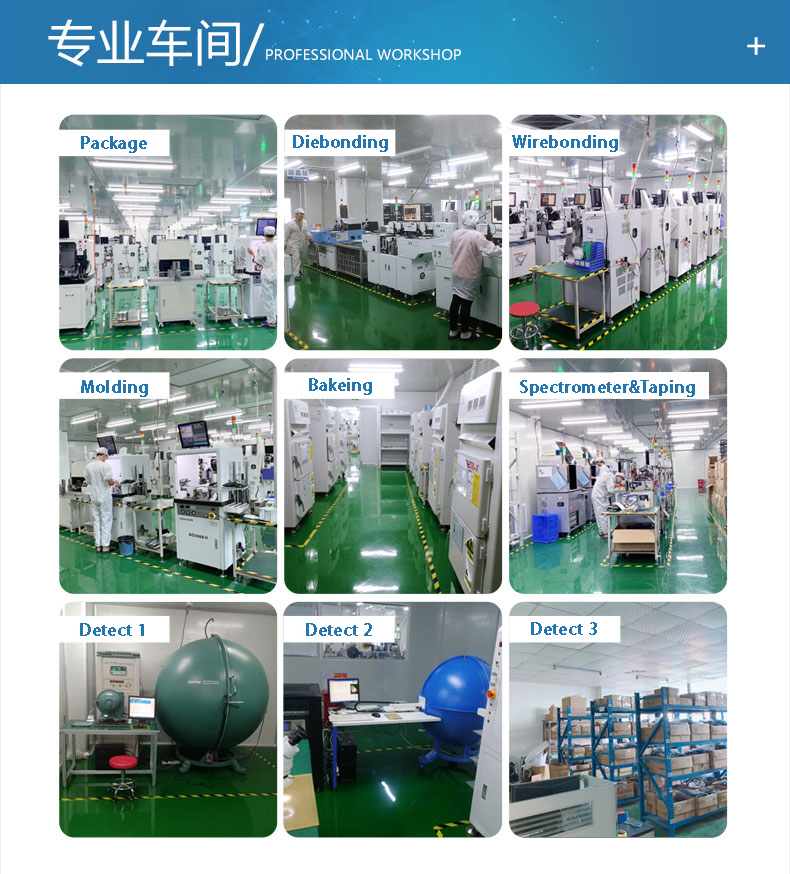

Production Process
