Light up the world with our “chip"
3 Years
| Ask Lasest Price | |
| Brand Name : | HuanYu Dream |
| Model Number : | HY-3030D620/590-2S |
| Certification : | Rohs |
| Price : | Negotiable |
| Payment Terms : | T/T, Paypal,Ali Pay |
| Supply Ability : | 500000pcs/Day |
| Delivery Time : | 7-9 Work Days |
Dual Color 3030 SMD LED Chip Bi-Color Red and Blue Emitting Color LED Chip
Product Features
Package Size: 3.0(L)*3.0(W)*0.65(H)mm
Silicone Packed
White Colors are available in (1800K-25000K)
Red Green Blue Yellow/Amber Purple colors are available
RoHS Certificates
Life Span: 50000Hours
Consistent Color and Smooth Light Quality
3030 Bi-Color Specifications
| Models | HY-3030D620/590-2S |
| Electronic power | 0.5W*2 |
| Color (CCT) | R:620-630nm + Y:590-595nm |
| VF | 2.0-2.4V/2.0-2.4V |
| IF | 700mA*2 |
| LUMINUOUS EFF | 15-20LM/20-25LM |
| WHOLE SIZE | 3.0*3.0mm |
| CHIP | Sanan/Epistar |
| VIEW ANGLE | 120° |
| Warranty | 3 years |
| Leading time | 7-10days |
CRI80 Bi-Color SMD LED Chip Warm White + Cool White
| Color | CCT(K) | VF(V) | IF(mA) | CRI | Luminous Flux (lm) | Part No. |
| Dual Color | 2700 6500 | 3.0-3.4V | 150mA*2 | 80 | 65-70 70-75 | HY-3030D2765-2S |
| Dual Color | 3000 6000 | 3.0-3.4V | 150mA*2 | 80 | 65-70 70-75 | HY-3030D3060-2S |
| Dual Color | 2000 6000 | 3.0-3.4V | 150mA*2 | 80 | 40-45 70-75 | HY-3030D2060-2S |
CRI95 Bi-Color SMD LED Chip Warm White + Cool White
| Color | CCT(K) | VF(V) | IF(mA) | CRI | Luminous Flux (lm) | Part No. |
| Dual Color | 2700 6500 | 3.0-3.4V | 150mA*2 | 95 | 55-60 60-70 | HY-3030D2765-2S |
| Dual Color | 3000 6000 | 3.0-3.4V | 150mA*2 | 95 | 55-60 60-70 | HY-3030D3060-2S |
| Dual Color | 3000 9000 | 3.0-3.4V | 150mA*2 | 95 | 50-55 55-60 | HY-3030D3090-2S |

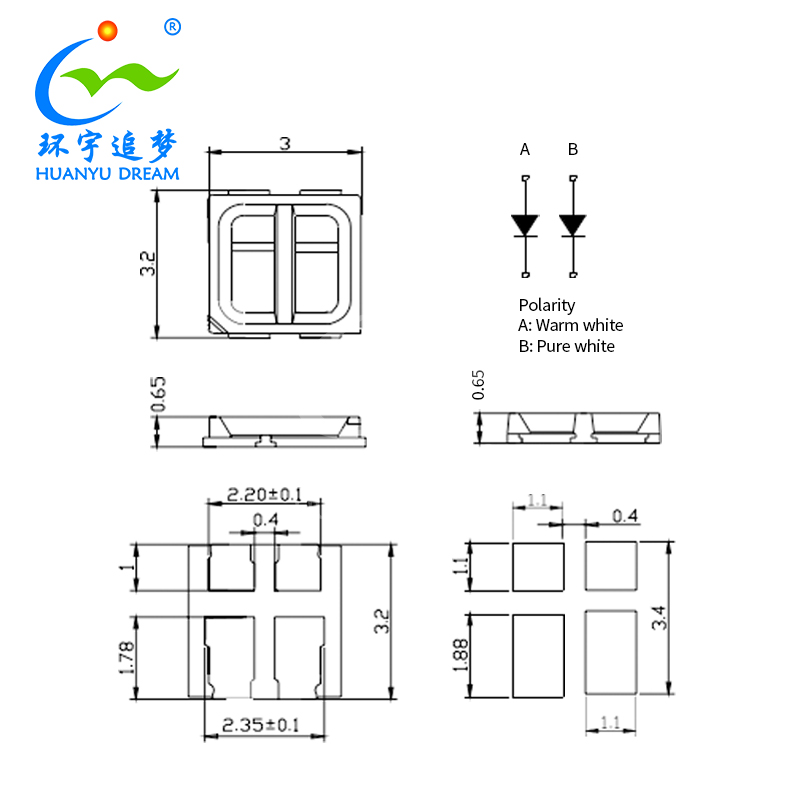

3030 Bi Color SMD LED Measurement
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
|
|
