Light up the world with our “chip"
3 Years
| Ask Lasest Price | |
| Brand Name : | HuanYu Dream |
| Model Number : | HY-2835W40B26-1S |
| Certification : | RoHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Paypal,Ali Pay |
| Supply Ability : | 500000pcs/Day |
| Delivery Time : | 7-9 Work Days |
The package dimension of SMD LED 2835 is 2.8mm*3.5mm.The SMD LED Module (surface-mount device light-emitting diode module) is a type of LED module that uses surface-mount technology (SMT) to mount LED chips on printed circuit boards (PCB). It is a self-contained surface-mount LED device designed either to function on its own or to plug into a compatible unit. The types of SMD LED Modules are distinguished by the dimensions of the LED package.
The 0.2W Led Chip 2835 SMD includes 3V 60mA 0.2W SMD 2835 LED, 3V 150mA 0.5W SMD 2835 LED, 9V 30mA 0.3W SMD 2835 LED, 9V 60mA 0.5W SMD 2835 LED, 9V 100mA 1W SMD 2835 LED, 18V 30mA 0.5W SMD 2835 LED, 18V 60mA 1W SMD 2835 LED. Many options can meet customers's different inquiries.
* Available in a broad range of CCTs from 2600K to 6700K.
* Long life span and high reliability
* Various configurations of different voltage and die count to meet
a wide range of application requirements.
* Deliver high efficacy and quality of light for distributed light
source.
* Excellent color Reproduction.
* Low thermal resistance.
* Environment-friendly.
* RoHS complaint.
0.2W 2835 smd white led Specifications
| Models | HY-2835W40B26-1S | |
| Electronic power | 0.2W | |
| Color temperature | 4000K | |
| VF | 3.0-3.4V | |
| IF | 60mA | |
| LUMINUOUS EFF | 26-28lm | |
| WHOLE SIZE | 2.8*3.5mm | |
| CHIP | Sanan/Epistar | |
| VIEW ANGLE | 120° | |
| Warranty | 3 years | |
| Leading time | 7-10days | |
| Super long lifetime | >50000hrs | |
0.2W 2835 smd white led Dimension(Tolerance:+/-0.1mm. Unit:mm)
0.2W 2835 smd white led package Specifications (The LEDs are packed in cardboard boxes after taping.)

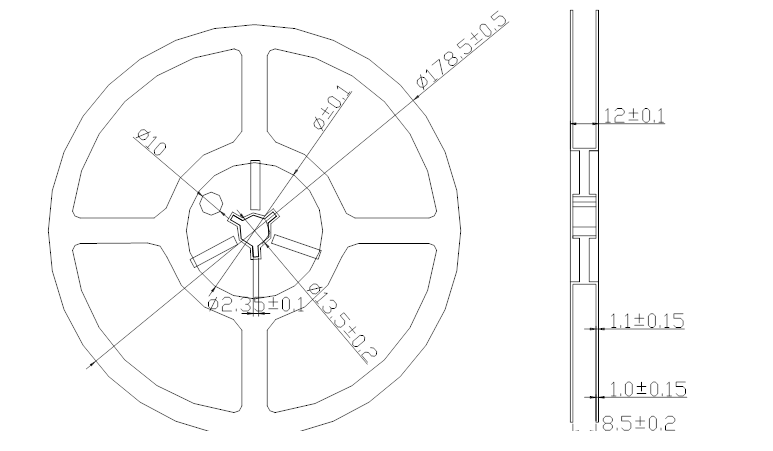

Reel Dimension
Here are some common applications:
1. 0.2W 2835 LED Chip used in indoor lighting equipment such as desk lamps, wall lamps, and chandeliers, which can provide warm and soft light and create a comfortable atmosphere.
2. 0.2W 2835 LED Chip used in decorative lighting, such as decorative lamps, Christmas trees, etc., which can beautify the environment.
3. 0.2W 2835 LED Chip used for outdoor landscape lighting, such as gardens, squares, parks, etc., which can create a warm and harmonious atmosphere without causing damage to human eyes.
This 3V 60mA 0.2W SMD 2835 LED is suitable for commercial lighting and LED outdoor lighting, such as LED bulb, LED spot lights, LED downlight, LED track light, LED floodlight, LED high bay light, LED wall pack light, LED street light, etc. It is also widely used as backlight, traffic light, LED display and other electric products.
Production Process
Q2: Can I get some samples for tests?
A2: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and
performance. But our clients should pay for the shipping freight themselves.
Q3: What about the lead time?
A3: Generally, it will take 3-5 working days for sample and 7-25
working days for mass order.
Q4: Do you accept customized products?
A4: Yes, we can offer OEM and ODM service as per your request.
Please kindly leave us messages about your requirements, our sales
engineer will check the details as soon as possible.
Q5: How many years of warranty of products you offer? And how do
you deal with the LED working issues?
A5: We offer 3-year warranty by default, and longer warranty can be
negotiated. If there is any problem with the product during the warranty, please feel free to contact us.
|
|
