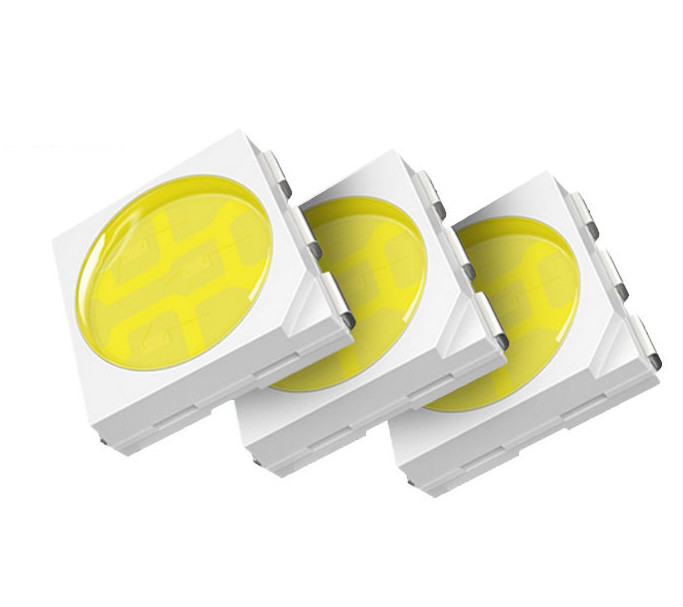

Led SMD 5050 0.2W 60mA White Color 5050 Smd Led For Smart Led Light
5050 SMD led Features
5050 SMD led Specifications
(1) Absolute Maximum Ratings (TA=25±5ºC)
| Item | Symbol | Absolute Maximum Rating | Unit |
| Forward Current | IF | 60 | mA |
| Pulse Forward Current | IFP | 90 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 300 | mW |
| Operating Temperature | Topr | -40ºC To +85ºC | °C |
| Storage Temperature | Tstg | -40ºC To +85ºC | °C |
| Soldering Temperature | Tsld | Reflow Soldering: 260ºC Hand Soldering : 350ºC | for 10sec. for 3sec. |
(2)Initial Electrical/Optical Characteristics (TA=25±5ºC)
| Symbol | Item | Units | Min. | Typ. | Max. | Test Conditions |
| VF | Forward Voltage | V | 3.0 | 3.4 | IF=60mA | |
| IR | Reverse Current | uA | - | - | 10 | VR=5V |
| 2θ½ | Viewing Angle | º | - | 120º | - | IF=60mA |
| ø | Luminous flux | lm | 14 | 16 | IF=60mA | |
| TC | Colour Temperature | k | 2400 | 2600 | IF=60mA | |
| RA | Color Rendering Index | Ra | 70 | 75 | IF=60mA |
5050 SMD led Measurement
Package (1000PCS/Reel)
Application
FAQ
|
|
