3030 SMD LED 1W 3V 160-170LM White SMD LED Chip
3030 SMD LED Features
Compact EMC design with Low dissipation
Super efficiency performance up to 180-190lm/w
High reliability with test report
Outdoor lighting, street light, Industrial luminaire, street light, LED bay light
1w 3030 smd led 160-180lm with 3V @ 300mA and 6V @ 150mA versions,Both 3V and 6V are available
3030 SMD LED Chip is with high efficiency180-190lm/W, which is the economic light source for industrial lighting.
3030 SMD LED Specifications:
| Models | HY-3030W60B140-2S | HY-3030W50B170-2S |
| Color temperature | 5000K | 5000K |
| CRI | 80Ra | 80Ra |
| IF | 300mA | 150mA |
| VF | 3.0-3.2V | 6.0-6.2V |
| Efficiency | 175-185LM/W | 180-190LM/W |
| Lumen | 160-170lm | 170-180lm |
| WHOLE SIZE | 3.0*3.0mm | 3.0*3.0mm |
| CHIP | Sanan/Epistar | Sanan/Epistar |
VIEW ANGLE | 120° | 120° |
| Leading time | 7-10days | 7-10days |

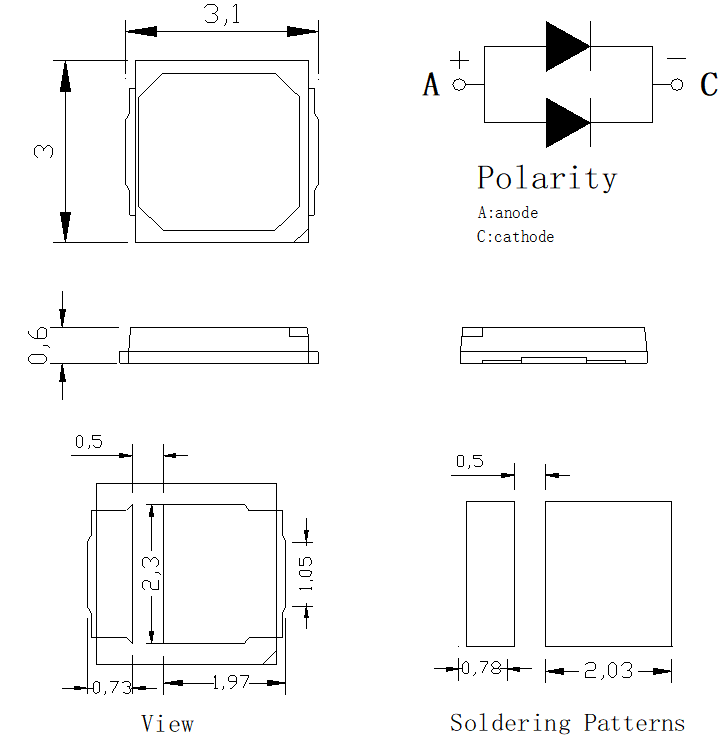

Product Dimmensions(Tolerance:+/-0.1, Unit:mm)
Electrical / Optical characteristics
(1) Absolute Maximum Ratings (Ta=25±5ºC)
| Item | Symbol | Absolute Maximum Rating | Unit |
| Forward Current | IF | 300 | mA |
| Pulse Forward Current | IFP | 500 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 1155 | mW |
| Operating Temperature | Topr | -40ºC To +85ºC | °C |
| Storage Temperature | Tstg | -40ºC To +85ºC | °C |
| Soldering Temperature | Tsld | Reflow Soldering: 260ºC Hand Soldering : 300ºC | for 10sec. for 3sec. |
(2)Initial Electrical/Optical Characteristics (Ta=25±5ºC)
| Symbol | Item | unit | Min. | Typ. | Max. | Test Conditions |
| VF | Forward Voltage | V | 3.0 | 3.2 | 3.4 | IF=300mA |
| IR | Reverse Current | uA | - | - | 1 | VR=5V |
| 2θ½ | Viewing Angle | º | - | 120º | - | IF=300mA |
| ø | Luminous flux | lm | 140 | 160 | IF=300mA | |
| TC | Colour Temperature | k | 6000 | 6250 | 6500 | IF=300mA |
| RA | Color Rendering Index | Ra | 80 | - | 85 | IF=300mA |
Reliability(Test Items and Results)
Type | Test Item | REF. Standard | Test condition | Duration | Sample count | Accept |
Environmental test | Temperature Cycle | JESD22-A104-A | -40℃~25℃~100℃~25℃ 30min,5min,30min,5min | 100 cycles | 100 | 0/100 |
| Thermal shock | JESD22-A106 | -40℃~100℃ 30min, 30min | 100 cycles | 100 | 0/100 | |
| High Temperature Storage | JEITA ED-4701 200 201 | TA=100℃±5℃ | 1000 Hrs | 100 | 0/100 | |
| Low Temperature Storage | JEITA ED-4701 200 202 | TA=-40℃±5℃ | 1000 Hrs | 100 | 0/100 | |
| Humidity Heat Storage | JIS C 7021 (1977)B-11 | Ta=60℃ RH=85% | 1000Hrs | 100 | 0/100 | |
Life test | Life test | JESD22-A108-A | Ta=25℃ If=300mA | 1000Hrs | 100 | 0/100 |
| High humidity Heat life test | JESD22-A101 | Ta=60℃ RH=85% IF=300mA | 1000Hrs | 100 | 0/100 |
Applications
