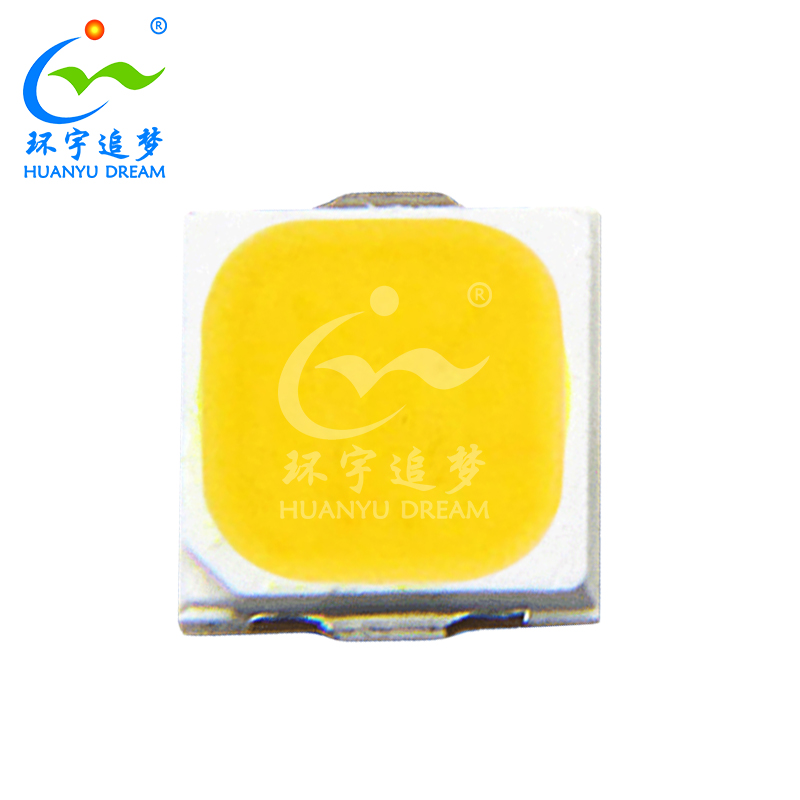

Popular Selling 1W Ra 80 3030 SMD Led 180LM-190LM 4000K 5000K 6000K
3030 Smd Led Details
Industry standard size 3.0 mm x 3.0 mm.White color temperature from 1700k-8000k, bicolor 2 CCTs in 1:Single color includes uv, blue, green, red, also pc (phosphor-converted) color available.Voltage 3V, 6V, 9V, warranty three years.
* PLCC-2 Package.
* Extremely wide viewing angle.
* Available on tape and reel.
* Suitable for all SMT assembly and solder process.
* RoHS compliant.
* Package:5000pcs/reel.
* The White LED which was fabricated using a blue chip and phosphor.
3030 Smd Led Package Dimension
NOTES:
1.All dimensions units are mm.
2.All dimensions tolerances are 0.1mm unless otherwise noted.
3030 Smd Led Specifications
Electrical - Optical Characteristics at Ta=25℃
| Type | Symbol | Test condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| Forward Voltage | VF | IF=150mA | 6.0 | -- | 6.4 | V |
| 3000K-3100K | φ | IF=150mA | 140 | -- | 150 | Lm |
| 3100K-4050K | φ | IF=150mA | 150 | -- | 165 | Lm |
| 4050K-7000K | φ | IF=150mA | 165 | -- | 175 | Lm |
| Reverse Current | IR | VR=10V | -- | -- | 1 | uA |
| Viewing Angle | 2θ1/2 | IF=150mA | 120 | Deg | ||
| Color Rendering Index | CRI | IF=150mA | 80 | -- | 83 | -- |
| Thermal resistance | Rth(j-s) | IF=150mA | -- | -- | 28 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symboy | Rating | Units |
| Power Dissipation | Pd | 1080 | mW |
| Forward Current | IF | 150 | mA |
| Peak Forward Current | IFP | 180 | mA |
| Reverse Voltage | VR | 20 | V |
| Junction temperature | Tj | 115 | ℃ |
| Solder temperature | Ts | 260 | ℃ |
| Operating Temperature | Topr | -40 ~ + 100 | ℃ |
| Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
| Electrostatic Discharge(HBM) | ESD | 2000 | V |
* Indoor/outdoor lighting.
* Bulb lighting.
* fluorescent lamp
* General use.
