Light up the world with our “chip"
3 Years
| Ask Lasest Price | |
| Brand Name : | HuanYu Dream |
| Model Number : | HY-2835 |
| Certification : | RoHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Paypal,Ali Pay |
| Supply Ability : | 500000pcs/Day |
| Delivery Time : | 7-9 Work Days |

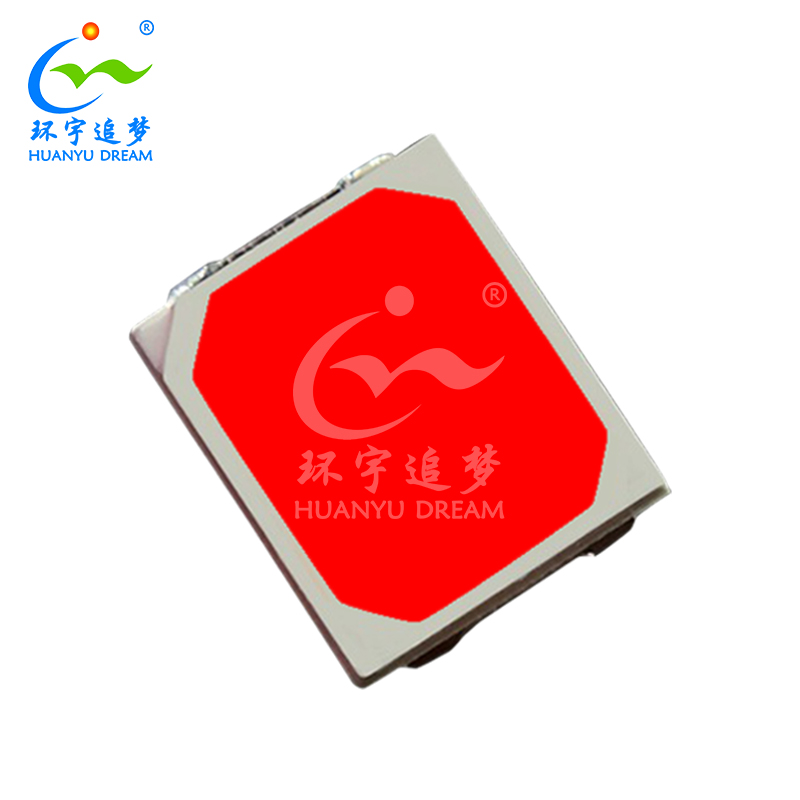

2835 LEDs combine good luminous efficacy, low power consumption and a wide beam angle into a compact package (2.8mm * 3.5mm). SMD 2835 LEDs are optimal for applications where high efficacy and smooth appearance are critical, such as troffers, high bay fixtures or panel lights.
High Voltage 2835 SMD LED Chip Specifications(Phosphor red)
| Models | HY-2835R65-9V1S HY-2835R120-9V2S | HY-2835P620-18V | HY-2835P620-36V | HY-2835P620-54V | HY-2835P620-72V |
| Electronic power | 0.5W/1W | 1W | 1W | 1W | 1W |
| CCT | 620-625nm | ||||
| VF | 9V | 18V | 36V | 54V | 72V |
| IF | --mA | 50mA | 30mA | 20mA | 15mA |
| LUMINUOUS EFF | 8-10lm | 20-30lm | 20-30lm | 20-30lm | |
| WHOLE SIZE | 2.8*3.5mm | ||||
| CHIP Brand | Sanan/Epistar | ||||
| VIEW ANGLE | 120° | ||||
| Warranty | 3 years | ||||
High Voltage 2835 SMD LED Chip Application
1. Are you factory or trade company?
We are a professional manufacturer of smd and cob led chips.
Welcome to visit the factory online or offline anytime!
2. Do you support OEM/ODM service?
Yes,we do support. With more than 10 years of industry experience
R&d team and design team
3. Any guarantee for your products?
√Strict quality control system
√Independent reliability testing laboratory
√All of our products with 3 years warranty
4. Can I get an sample to check quality before mass order?
Welcome to place sample order to check our quality. we can Minus
sample cost after mass order.
|
|
