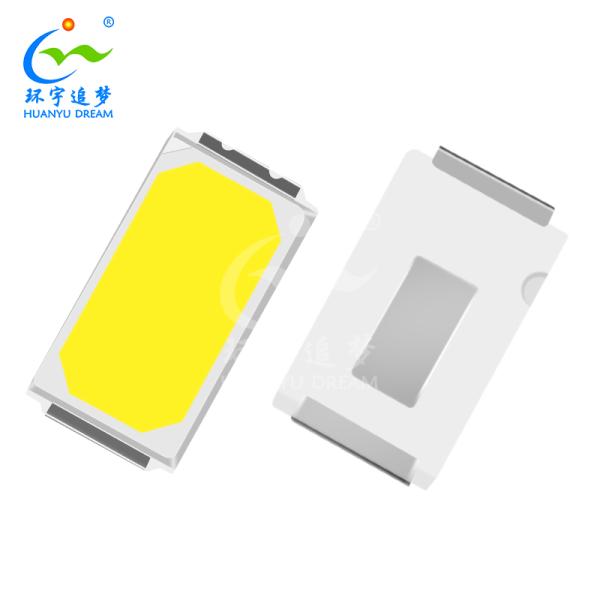

0.5W 4000K 5730 SMD LED Chip 3V 150mA 65LM-70LM LED Diode LED Light Emitting Diodes

Shenzhen Huanyu Dream Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.5W 4000K 5730 SMD LED Chip 3V 150mA 65LM-70LM LED Diode LED Light Emitting Diodes from wholesalers

    Buy cheap 0.5W 4000K 5730 SMD LED Chip 3V 150mA 65LM-70LM LED Diode LED Light Emitting Diodes from wholesalers
    • Buy cheap 0.5W 4000K 5730 SMD LED Chip 3V 150mA 65LM-70LM LED Diode LED Light Emitting Diodes from wholesalers
    • Buy cheap 0.5W 4000K 5730 SMD LED Chip 3V 150mA 65LM-70LM LED Diode LED Light Emitting Diodes from wholesalers
    • Buy cheap 0.5W 4000K 5730 SMD LED Chip 3V 150mA 65LM-70LM LED Diode LED Light Emitting Diodes from wholesalers
    • Buy cheap 0.5W 4000K 5730 SMD LED Chip 3V 150mA 65LM-70LM LED Diode LED Light Emitting Diodes from wholesalers

    0.5W 4000K 5730 SMD LED Chip 3V 150mA 65LM-70LM LED Diode LED Light Emitting Diodes

    Ask Lasest Price
    Brand Name : HuanYu Dream
    Model Number : HY-5730W40B60-1S
    Certification : RoHS
    Price : Negotiable
    Payment Terms : T/T, Paypal,Ali Pay
    Supply Ability : 500kpcs/Day
    Delivery Time : 7-9 Work Days
    • Product Details
    • Company Profile

    0.5W 4000K 5730 SMD LED Chip 3V 150mA 65LM-70LM LED Diode LED Light Emitting Diodes

    0.5W 4000K 65-70LM 5730 Smd Led Chip 3V 150mA SMD LED Diode LED Light Emitting Diodes


    5730 Smd Led Chip Features


    • Package Size:5.7(L)x3.0(W)
    • Copper base with ultra stability
    • Compact SMD design with high brightness
    • Consistent Color and Smooth environment
    • Super long lifetime:>50000hrs


    5730 Smd Led Chip Dimension (Tolerance:+/-0.1mm. Unit:mm)

    Electrical / Optical characteristics


    Initial Electrical/Optical Characteristics (TA=25±5ºC)

    SymbolItemUnitsMin.Typ.Max.Test Conditions
    VFForward VoltageV3.03.23.4IF=150mA
    IRReverse CurrentuA--5VR=5V
    2θ½Viewing Angleº-120º-IF=150mA
    øLuminous fluxlm6570IF=150mA
    WLDColor TemperatureK40004500IF=150mA

    Absolute Maximum Ratings (TA=25±5ºC)

    ItemSymbol

    Absolute Maximum Rating


    Unit

    Forward CurrentIF150mA
    Pulse Forward CurrentIFP200mA
    Reverse VoltageVR5V
    Power DissipationPD600mW
    Operating TemperatureTopr-40ºC To +85ºC°C
    Storage TemperatureTstg-40ºC To +85ºC°C
    Soldering TemperatureTsld

    Reflow Soldering: 260ºC

    Hand Soldering : 350ºC

    for 10sec.

    for 3sec.





    5730 Smd Led Chip Application

    • High Power LED Lamp
    • Indoor lighting: Fluorescent lamp, tube
    • Commercial Illuminate and displays: Advertising words, light box
    • Decorative Lighting: Light Strip
    • Other illuminations
    • Led back lighting


    Company Service


    1. 3 Years quality guarantee for high power cool white led chip

    2. unconditional return back if unsatisfied with quality.

    3. Provide lowest cost for goods' shippments.

    4. Provide customized color temperature and CRI if needed.

    5. Provide full data sheet and test report for every order every item.

    6. Provide enough market and prices info for other accessories for your lamp manufacturers.

    7. Provide PCB desgin and 1watt LED soldering and other OEM severices if suctomers need.

    8. Provide VIP SPECIAL discounts for big orders and long-term cooperation customers.
